1SBL136501R2100

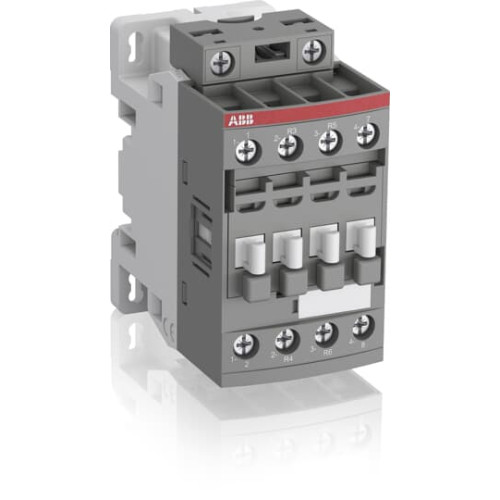

AF09Z-22-00-21 24-60V50/60HZ 20-60VDC Contactor

Manufacturer's No: AF09Z-22-00-21     Manufacturer: ABB
AF09Z-22-00-21 24-60V50/60HZ 20-60VDC Contactor

Availability On Request

£101.96
  • Model: AF09Z-22-00-21
  • 4 pole contactor
  • Voltage range: 24-60V 50/60Hz, 20-60VDC
  • Maximum motor control: 4 kW / 400V AC (AC-3)
  • Maximum power circuit switching: 25A (AC-1) or 25A UL general use
  • Wide control voltage range for managing large variations
  • Built-in surge protection for compact solution
  • Block type design for easy extension with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF09Z-22-00-21
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Depth -
77 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
25 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability On Request

£101.96
