1SBL136561R2200

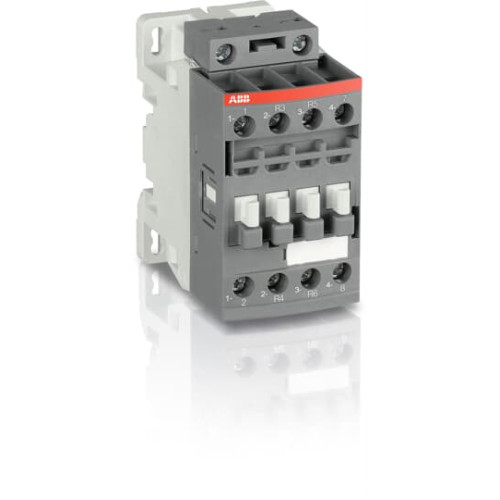

AF09ZB-22-00-22 48-130V50/60HZ-DC Contactor

Manufacturer's No: AF09ZB-22-00-22     Manufacturer: ABB
AF09ZB-22-00-22 48-130V50/60HZ-DC Contactor

Availability On Request

£106.42
AF09ZB 4-pole contactors comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They are mainly used for controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to 690 V AC and 440 V DC. Improve the compactness of the installations thanks to reduced dimension and side-by-side mounting requiring less 15% width (without spacing) from -40 °C up to +70 °C. Meet all main rollling stocks standards: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of EN 50155 standards, shocks and vibration withstand conforming to IEC 61373 cat. 1, class B. Reach the highest levels in fire and smoke behaviour with compliance to European standard EN 45545-2 (HL2, HL3 hazard levels) in group mounting. Reduce train energy with lighter devices and requiring 68% less coil energy consumption in operation. Electronic coil interface handling large DC voltage fluctuation voltage, including several Uc DC control voltages used for battery supply and accepting sinusoïdal AC 50/60 Hz control supplies included inside Ucmin.... Ucmax voltage range. Max permitted AC 50/60 Hz control voltage must not be exceeded (see technical data). Wide range of auxiliary contact blocks for front and side mounting.


Product

Manufacturer Material ID -
AF09ZB-22-00-22
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Depth -
77 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
25 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
