1SFL427101R1411

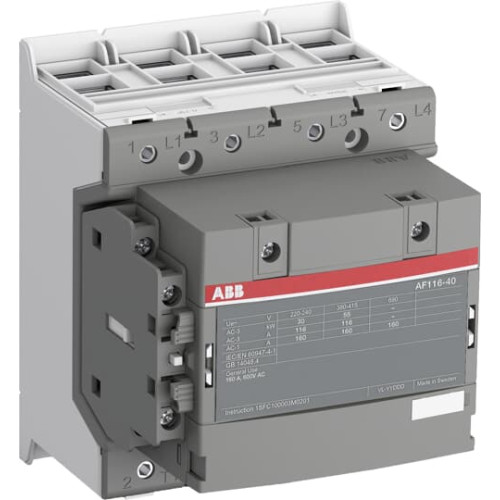

AF116-40-11-14 Contactor

Manufacturer's No: AF116-40-11-14     Manufacturer: ABB
AF116-40-11-14 Contactor

Availability On Request

£473.33
  • Model: AF116-40-11-14 Contactor
  • Configuration: 4 pole
  • Voltage: 690 V IEC or 600 V UL
  • Auxiliary Contacts: Pre-mounted
  • Features: Double clamp, surge protection
  • Motor Control: Up to 55 kW / 400 V AC (AC-3)
  • Power Circuit Switching: Up to 160 A (AC-1) or 160 A UL general use
  • Control Voltage Range: 250-500 V 50/60 Hz and DC
  • Technology: AF technology for managing large control voltage variations and reducing energy consumption
  • Design: Block type design for easy extension with add-on auxiliary contact blocks

Read more

  • Accessories: Wide range of additional accessories available


Product

Manufacturer Material ID -
AF116-40-11-14
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
128 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
160 Ampere
Rated operation current Ie at AC-3, 400 V -
116 Ampere
Rated operation power at AC-3, 400 V -
55 Kilowatt
Rated operation power NEMA -
14.914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
120 Millimetre
ABB

Availability On Request

£473.33
Sign in or Register for customer prices.
