1SFL647001R6811

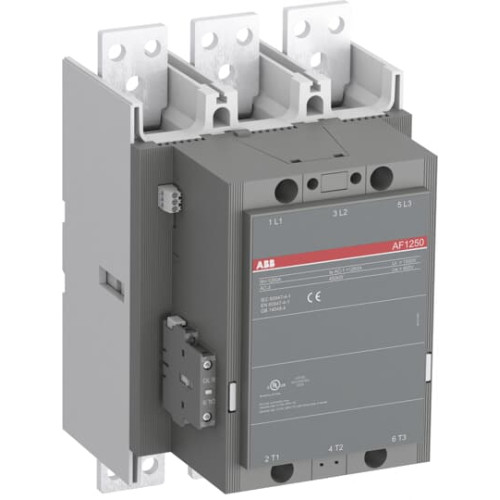

AF1250-30-11 24-60V DC Contactor

Manufacturer's No: AF1250     Manufacturer: ABB
AF1250-30-11 24-60V DC Contactor

Availability On Request

£4,293.41
  • Model: AF1250-30-11-68
  • Configuration: 3 pole
  • Voltage: 24-60V DC
  • Maximum Current: 1260A (AC-1) or 1210A UL general use
  • Features pre-mounted auxiliary contacts and Main Circuit Bars
  • Wide control voltage range for managing large variations
  • Built-in surge protection for compact solution
  • Block type design for easy extension with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF1250
Net Weight -
15.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
20 Volt
Depth -
242 Millimetre
Height -
344 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
1260 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
210 Millimetre
ABB

Availability On Request

£4,293.41
