1SFL447001R1100

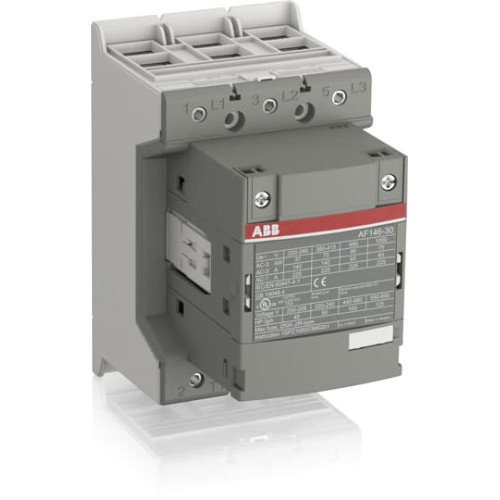

AF140-30-00-11 Contactor

Manufacturer's No: AF140-30-00-11     Manufacturer: ABB
AF140-30-00-11 Contactor

Availability On Request

£596.22
  • AF140-30-00-11 is a 3-pole contactor rated for 690 V IEC or 600 V UL
  • Suitable for controlling motors up to 75 kW / 400 V AC or 100 hp / 480 V UL
  • Switching power circuits up to 200 A (AC-1) or 200 A UL general use
  • Wide control voltage range of 24-60 V 50/60 Hz and 20-60 V DC
  • Built-in surge protection for added reliability
  • Compact block type design with double clamp
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF140-30-00-11
Net Weight -
1.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Depth -
126 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
37.285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
ABB

Availability On Request

£596.22
