1SFL467002R1400

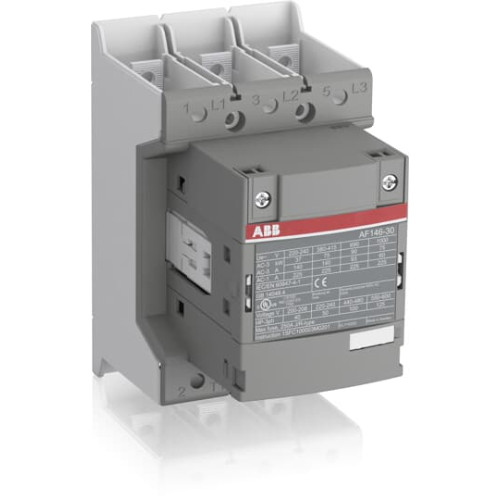

AF146-30-00B-14 Contactor

Manufacturer's No: AF146-30-00B-14     Manufacturer: ABB
AF146-30-00B-14 Contactor

Availability On Request

£609.38
  • Model: AF146-30-00B-14
  • Type: 3 pole contactor
  • Voltage: 1000 V IEC or 600 V UL
  • Motor Control: Up to 75 kW / 400 V AC or 100 hp / 480 V UL
  • Power Circuit Switching: Up to 225 A AC-1 or 200 A UL
  • Control Voltage Range: 250-500 V 50/60 Hz and DC
  • Surge Protection: Built-in
  • Design: Block type design
  • Expandability: Easily extended with add-on auxiliary contact blocks
  • Accessories: Wide range of additional accessories


Product

Manufacturer Material ID -
AF146-30-00B-14
Net Weight -
1.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
126 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
225 Ampere
Rated operation current Ie at AC-3, 400 V -
146 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
37.285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
ABB

Availability On Request

£609.38
