1SBL176001R2110

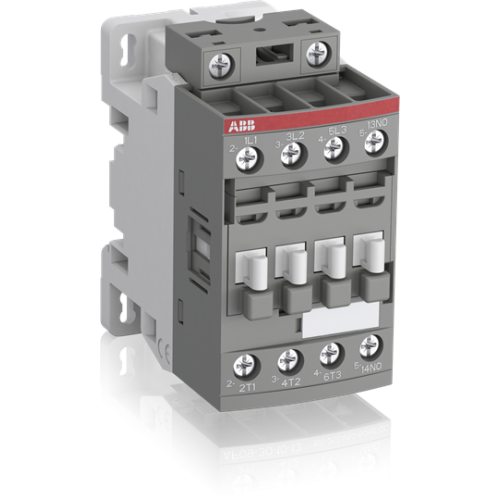

AF16Z-30-10-21 24-60V50/60HZ 20-60VDC Contactor

Manufacturer's No: AF16Z-30-10-21     Manufacturer: ABB
AF16Z-30-10-21 24-60V50/60HZ 20-60VDC Contactor

Availability Back Order

£115.61
  • Model: AF16Z-30-10-21
  • 3-pole contactor
  • Voltage: 690 V IEC or 600 V UL
  • Built-in auxiliary contact
  • Control motors up to 7.5 kW / 400 V AC or 10 hp / 480 V UL
  • Switch power circuits up to 30 A (AC-1) or 30 A UL
  • Control voltage range: 24-60 V 50/60 Hz and 20-60 V DC
  • Surge protection built-in
  • Compact block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF16Z-30-10-21
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Depth -
77 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
30 Ampere
Rated operation current Ie at AC-3, 400 V -
18 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability Back Order

£115.61
