1SFL487002R1111

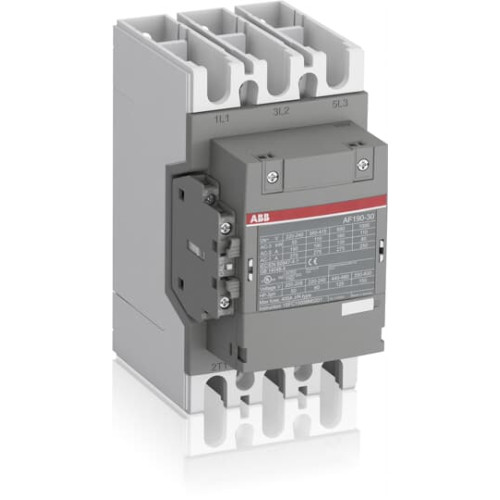

AF190-30-11-11 Contactor

Manufacturer's No: AF190-30-11-11     Manufacturer: ABB
AF190-30-11-11 Contactor

Availability Back Order

£758.49
  • AF190-30-11-11 Contactor
  • 3 pole contactor
  • Rated at 1000 V IEC or 600 V UL
  • Pre-mounted auxiliary contacts and Main Circuit Bars
  • Controls motors up to 90 kW / 400 V AC or 125 hp / 480 V UL
  • Switches power circuits up to 275 A (AC-1) or 250 A UL general use
  • Wide control voltage range: 24-60 V 50/60 Hz and 20-60 V DC
  • Built-in surge protection
  • Compact block type design
  • Easily extendable with add-on auxiliary contact blocks

Read more

  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF190-30-11-11
Net Weight -
3.23kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Depth -
152 Millimetre
Height -
196 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
275 Ampere
Rated operation current Ie at AC-3, 400 V -
190 Ampere
Rated operation power at AC-3, 400 V -
90 Kilowatt
Rated operation power NEMA -
44.742 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
105 Millimetre
ABB

Availability Back Order

£758.49
