1SFL707001R7011

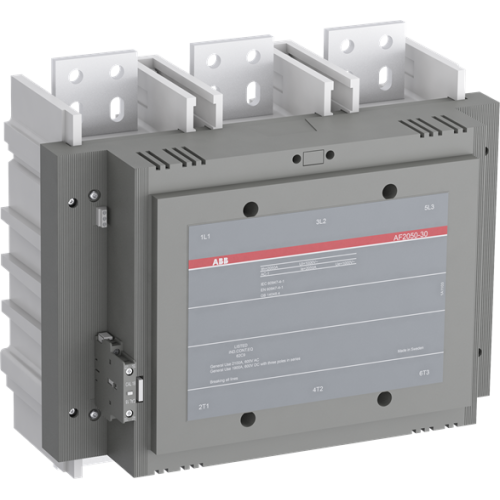

AF2050-30-11 100-250V 50/60Hz / 100-250 DC Contactor

Manufacturer's No: AF2050     Manufacturer: ABB
AF2050-30-11 100-250V 50/60Hz / 100-250 DC Contactor

Availability Available to order

£10,284.21
  • AF2050-30-11-70 3-pole contactor
  • Voltage range: 100-250V 50/60Hz AC, 100-250V DC
  • Switching power circuits up to 2050A (AC-1) or 2100A UL general use
  • Pre-mounted auxiliary contacts and Main Circuit Bars
  • Wide control voltage range for managing large variations
  • Built-in surge protection for compact solution
  • Block type design for easy extension with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF2050
Net Weight -
33.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Rated operation current Ie at AC-3, 400 V -
1060 Ampere
Depth -
244 Millimetre
Height -
392 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
2050 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
438 Millimetre
