1SFL527062R1222

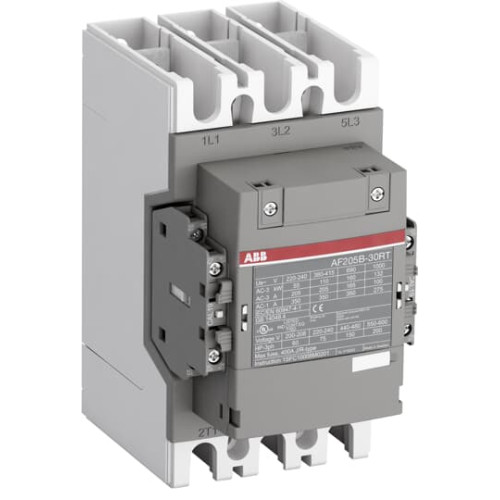

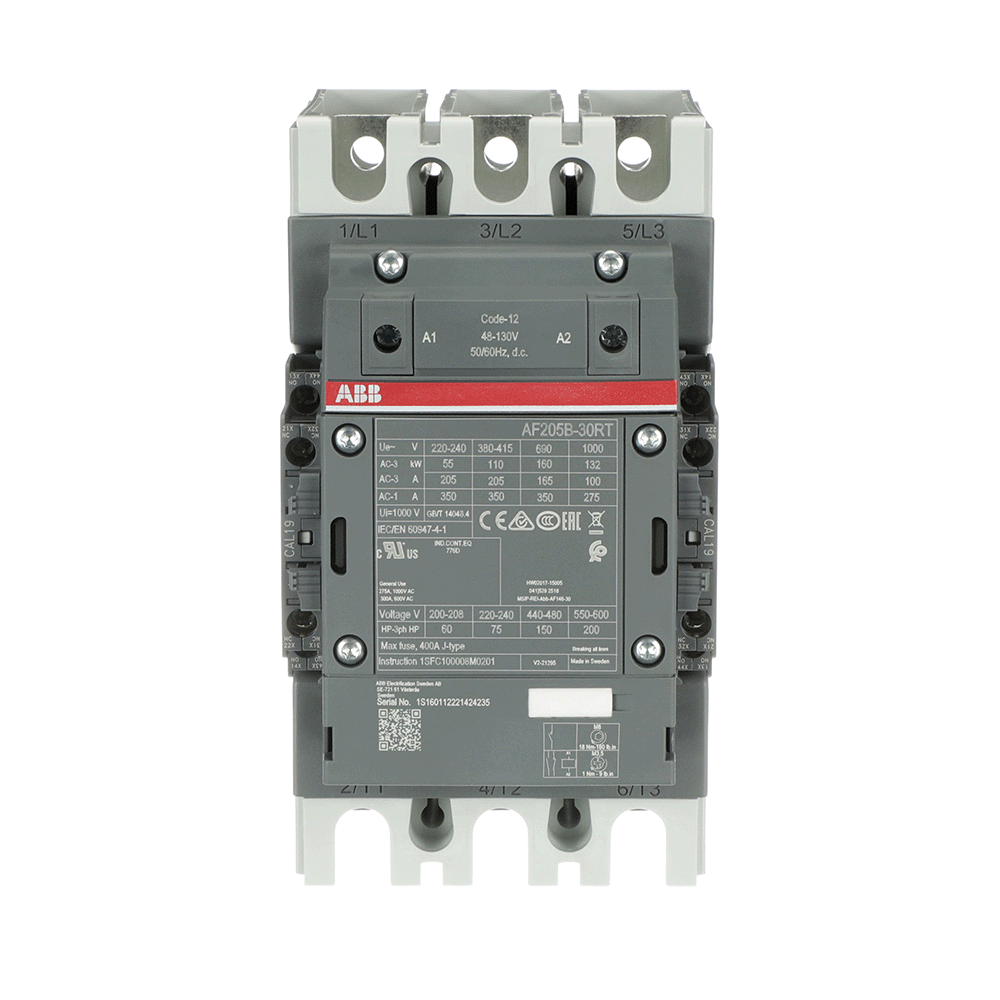

AF205B-30-22RT-12 Contactor

Manufacturer's No: AF205B-30-22RT-12     Manufacturer: ABB
AF205B-30-22RT-12 Contactor

Availability Available to order

£985.46
  • AF205B-30-22RT-12 Contactor
  • 3 pole contactor
  • Voltage: 1000 V IEC or 600 V UL
  • Pre-mounted auxiliary contacts and ring tongue ferrules
  • Controls motors up to 110 kW / 400 V AC or 150 hp / 480 V UL
  • Switches power circuits up to 350 A (AC-1) or 300 A UL
  • Wide control voltage range: 48-130 V 50/60 Hz and DC
  • Built-in surge protection
  • Compact design with AF technology for energy efficiency
  • Block type design, extendable with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AF205B-30-22RT-12
Net Weight -
2.82kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Rated control supply voltage Us at DC -
48 Volt
Depth -
152 Millimetre
Height -
196 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated control supply voltage at DC -
48 Volt
Rated operation current Ie at AC-1, 400 V -
350 Ampere
Rated operation current Ie at AC-3, 400 V -
205 Ampere
Rated operation power at AC-3, 400 V -
110 Kilowatt
Rated operation power NEMA -
55.9275 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
105 Millimetre
ABB

Availability Available to order

£985.46
