1SFL667001R7011

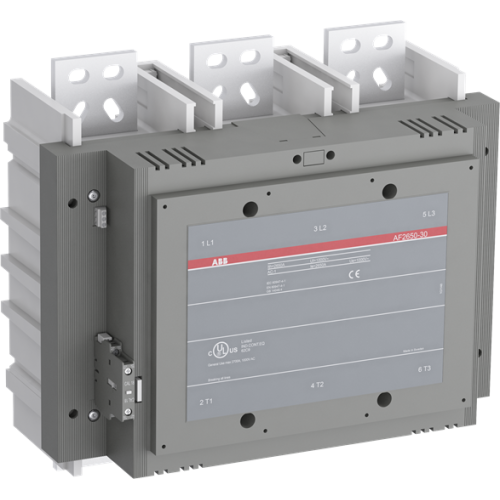

AF2650-30-11 100-250V 50/60Hz / 100-250 DC Contactor

Manufacturer's No: AF2650     Manufacturer: ABB
AF2650-30-11 100-250V 50/60Hz / 100-250 DC Contactor

Availability On Request

£17,763.06
A 3-phase Contactor suitable for various applications such as Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC


Product

Manufacturer Material ID -
AF2650
Net Weight -
41.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
- Ampere
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
244 Millimetre
Height -
422 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
2650 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
438 Millimetre
ABB

Availability On Request

£17,763.06
