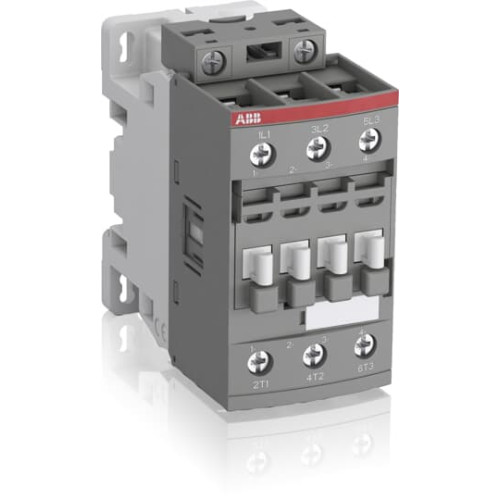

1SBL277001R1300

15kW (32A), 100-250V 50/60HZ-AC, AF30-30-00-13

Manufacturer's No: AF30-30-00-13     Manufacturer: ABB
15kW (32A), 100-250V 50/60HZ-AC, AF30-30-00-13

Availability In Stock

£134.54
  • AF30-30-00-13 contactor:
    • 3 pole
    • 690V IEC or 600V UL
    • Screw terminals
    • Controlling motors up to 15 kW / 400V AC or 20 hp / 480V UL
    • Switching power circuits up to 50A
    • Wide control voltage range: 100-250V 50/60Hz AC and DC
    • Surge protection built-in
    • Compact design with AF technology for energy efficiency and stable operations
    • Block type design
    • Compatible with add-on auxiliary contact blocks and various accessories
  • 3 pole
  • 690V IEC or 600V UL
  • Screw terminals
  • Controlling motors up to 15 kW / 400V AC or 20 hp / 480V UL
  • Switching power circuits up to 50A
  • Wide control voltage range: 100-250V 50/60Hz AC and DC
  • Surge protection built-in
  • Compact design with AF technology for energy efficiency and stable operations
  • Block type design

Read more

  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF30-30-00-13
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
86 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated operation current Ie at AC-3, 400 V -
32 Ampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability In Stock

£134.54
