1SBL347201R1100

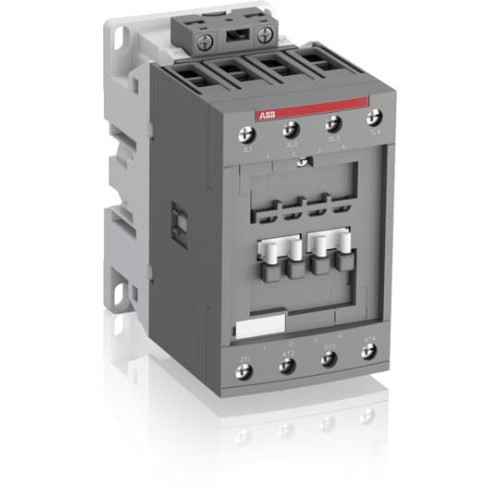

AF40-40-00-11 24-60V50/60HZ 20-60VDC Contactor

Manufacturer's No: AF40-40-00-11     Manufacturer: ABB
AF40-40-00-11 24-60V50/60HZ 20-60VDC Contactor

Availability On Request

£350.82
  • AF40-40-00-11 4 pole contactor
  • Voltage range: 24-60V 50/60Hz AC, 20-60V DC
  • Suitable for motors up to 18.5 kW / 400V AC
  • Switching power circuits up to 70A AC-1 or 60A UL general use
  • Wide control voltage range for managing large variations
  • Built-in surge protection
  • Block type design with screw terminals
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF40-40-00-11
Net Weight -
1.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Depth -
113.5 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
70 Ampere
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
70 Millimetre
ABB

Availability On Request

£350.82
