1SFL577001R6811

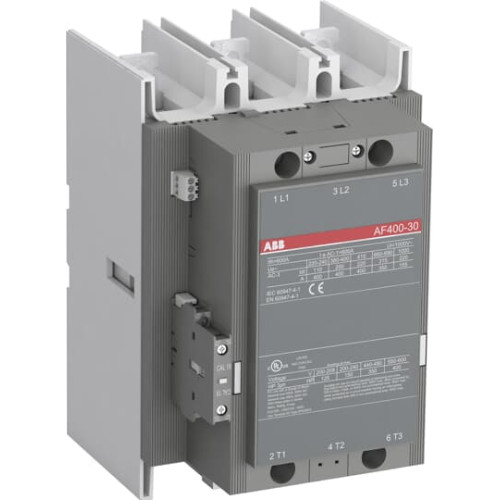

AF400-30-11 24-60V DC Contactor

Manufacturer's No: AF400-30-11     Manufacturer: ABB
AF400-30-11 24-60V DC Contactor

Availability On Request

£1,980.73
  • Model: AF400-30-11-68
  • 3-pole contactor
  • Voltage: 1000 V IEC or 600 V UL
  • Control voltage range: 24-60 V DC
  • Motor capacity: up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL
  • Power circuit switching capacity: up to 600 A (AC-1) or 550 A UL
  • Pre-mounted auxiliary contacts and Main Circuit Bars
  • Surge protection built-in
  • Wide control voltage range reduces panel energy consumption
  • Block type design for easy extension with add-on auxiliary contact blocks

Read more

  • Suitable for unstable networks


Product

Manufacturer Material ID -
AF400-30-11
Net Weight -
12.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
216 Millimetre
Height -
278 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
600 Ampere
Rated operation current Ie at AC-3, 400 V -
400 Ampere
Rated operation power at AC-3, 400 V -
200 Kilowatt
Rated operation power NEMA -
111.855 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
186 Millimetre
ABB

Availability On Request

£1,980.73
