1SBL367001R1322

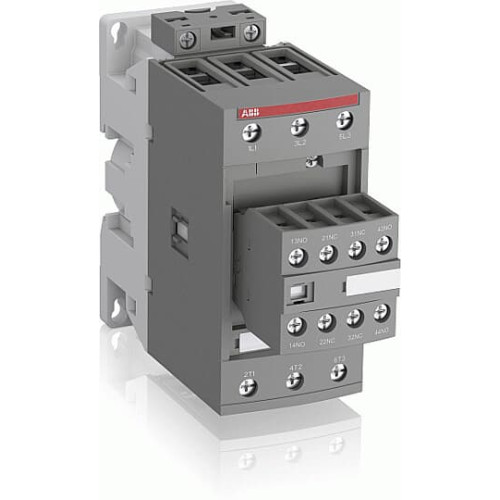

AF52-30-22-13 100-250V50/60HZ-DC Contactor

Manufacturer's No: AF52-30-22-13     Manufacturer: ABB
AF52-30-22-13 100-250V50/60HZ-DC Contactor

Availability Back Order

£250.75
  • Model: AF52-30-22-13
  • 3-pole contactor
  • Voltage: 100-250V 50/60Hz and DC
  • Maximum motor power: 22 kW / 400V AC or 40 hp / 480V UL
  • Maximum switching power: 100A AC-1 or 80A UL
  • Wide control voltage range for managing large variations
  • Built-in surge protection
  • Compact block type design
  • Pre-mounted auxiliary contacts and screw terminals
  • Easily extendable with add-on auxiliary contact blocks

Read more

  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF52-30-22-13
Net Weight -
1.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
144 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
100 Ampere
Rated operation current Ie at AC-3, 400 V -
53 Ampere
Rated operation power at AC-3, 400 V -
22 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
55 Millimetre
ABB

Availability Back Order

£250.75
