1SFL617001R6811

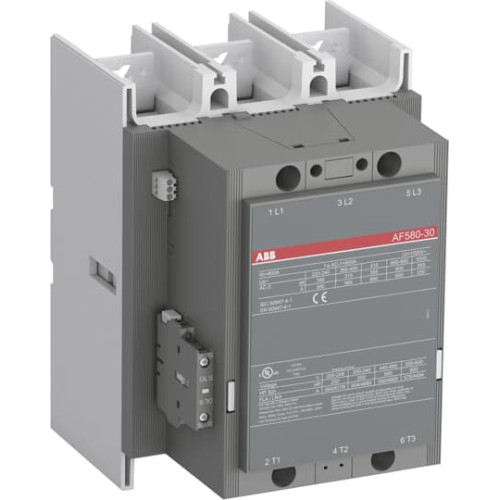

AF580-30-11 24-60V DC Contactor

Manufacturer's No: AF580-30-11     Manufacturer: ABB
AF580-30-11 24-60V DC Contactor

Availability On Request

£2,853.06
  • Model: AF580-30-11-68
  • Configuration: 3 pole
  • Voltage Range: 24-60V DC
  • Maximum Motor Power: 315 kW / 400V AC (AC-3)
  • Maximum Switching Power: 800A (AC-1)
  • Surge Protection: Built-in
  • Wide control voltage range for managing large variations
  • Compact block type design
  • Easily extendable with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF580-30-11
Net Weight -
16.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
242 Millimetre
Height -
283 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
800 Ampere
Rated operation current Ie at AC-3, 400 V -
580 Ampere
Rated operation power at AC-3, 400 V -
315 Kilowatt
Rated operation power NEMA -
186.425 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
210 Millimetre
ABB

Availability On Request

£2,853.06
