1SFL637001R7111

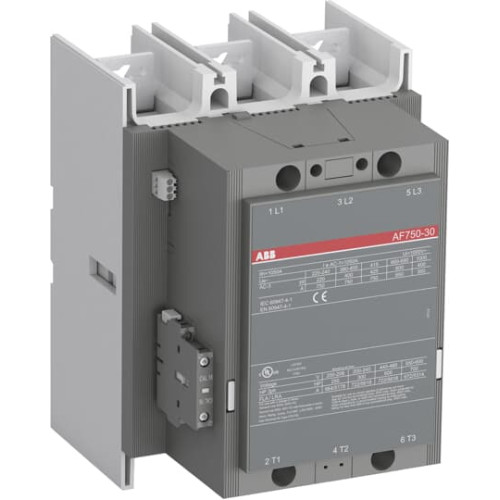

AF750-30-11 250-500V 50/60Hz / 250-500V DC Contactor

Manufacturer's No: AF750-30-11-250     Manufacturer: ABB
AF750-30-11 250-500V 50/60Hz / 250-500V DC Contactor

Availability On Request

£4,450.31
  • Model: AF750-30-11-71
  • 3 pole contactor
  • Voltage range: 250-500V AC 50/60Hz, 250-500V DC
  • Maximum motor power: 400 kW / 400V AC (AC-3), 600 hp / 480V UL
  • Maximum switching power: 1050A AC-1, 900A UL general use
  • Pre-mounted auxiliary contacts and Main Circuit Bars
  • Wide control voltage range for managing large variations
  • Built-in surge protection
  • Block type design for easy extension with add-on auxiliary contact blocks
  • Compatible with a wide range of accessories


Product

Manufacturer Material ID -
AF750-30-11-250
Net Weight -
15.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
250 Volt
Rated control supply voltage Us at AC 60HZ -
250 Volt
Rated control supply voltage Us at DC -
250 Volt
Depth -
242 Millimetre
Height -
283 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
250 Volt
Rated control supply voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at DC -
250 Volt
Rated operation current Ie at AC-1, 400 V -
1050 Ampere
Rated operation current Ie at AC-3, 400 V -
750 Ampere
Rated operation power at AC-3, 400 V -
400 Kilowatt
Rated operation power NEMA -
223.71 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
210 Millimetre
ABB

Availability On Request

£4,450.31
