1SBL171001R8810

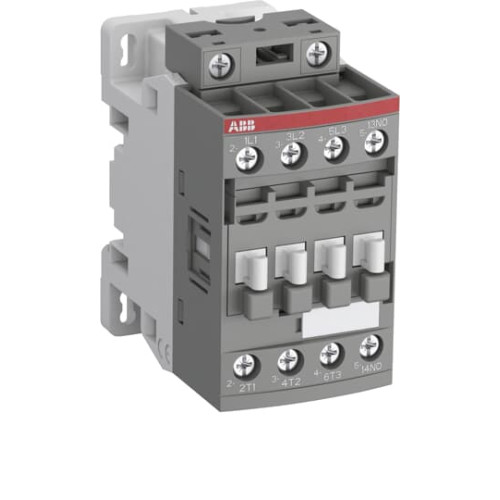

AFC16-30-10-88 230-240V50Hz 240-260V60Hz Contactor

Manufacturer's No: AFC16.30.10.88     Manufacturer: ABB
AFC16-30-10-88 230-240V50Hz 240-260V60Hz Contactor

Availability On Request

£62.35
  • Model: AFC16-30-10-88
  • Configuration: 3-pole
  • Voltage: 230-240V 50Hz, 240-260V 60Hz
  • Maximum Power: 7.5 kW / 400V AC, 10 hp / 480V AC
  • Maximum Current: 30A
  • Auxiliary Contact: 1 N.O built-in
  • Terminals: Screw terminals
  • Suitable for power circuits up to 7.5 kW / 400V AC or 10 hp / 480V AC
  • Optimized operating time for AC controlled applications
  • Can be extended with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AFC16.30.10.88
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
77 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Rated operation current Ie at AC-1, 400 V -
30 Ampere
Rated operation current Ie at AC-3, 400 V -
18 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
45 Millimetre
ABB

Availability On Request

£62.35
