1SBL291001R8800

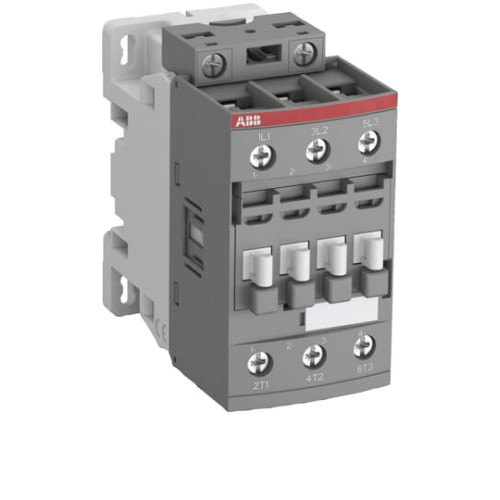

AFC38-30-00-88 230-240V50Hz 240-260V60Hz Contactor

Manufacturer's No: AFC38.30.00.88     Manufacturer: ABB
AFC38-30-00-88 230-240V50Hz 240-260V60Hz Contactor

Availability On Request

£155.09
  • Model: AFC38-30-00-88
  • Voltage: 230-240V at 50Hz, 240-260V at 60Hz
  • Configuration: 3-pole contactor
  • Maximum Voltage: 690V IEC, 600V UL
  • Maximum Power: Up to 18.5 kW at 400V AC (AC-3), 25 hp at 480V AC UL
  • Maximum Current: 50A (AC-1), 50A UL
  • Terminals: Screw terminals
  • Optimized operating time for AC controlled applications
  • Control Voltage: 230-240V AC at 50Hz, 240-260V AC at 60Hz
  • Block type design for easy extension with add-on auxiliary contact blocks

Read more

  • Compatible with a wide range of additional accessories


Product

Manufacturer Material ID -
AFC38.30.00.88
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Depth -
86 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
45 Millimetre
ABB

Availability On Request

£155.09
