2CLA643749N1101

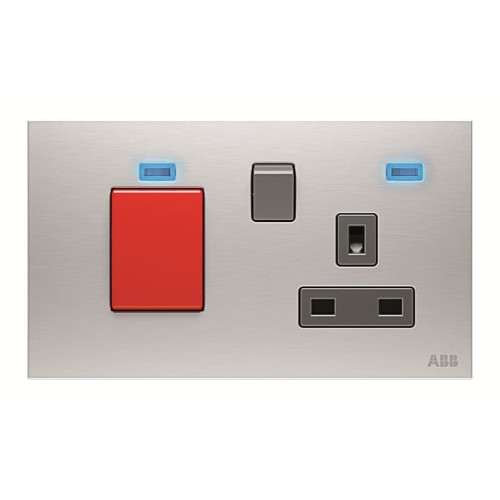

Cooker control unit Without imprint British Standard Stainless steel - Millenium

Manufacturer's No: AM118147-ST     Manufacturer: ABB
Cooker control unit Without imprint British Standard Stainless steel  - Millenium

Availability On Request

£41.78
  • Cooker control unit for British Standard
  • Material: Stainless steel
  • Rated voltage: 250Vac
  • Main switch:
    • Rated current: 45A
    • Double pole
    • Indicator LED
  • Socket outlet:
    • Rated current: 13A
    • Child safety shutter system
    • Indicator LED
  • Flush wall box size: 45mm


Product

Manufacturer Material ID -
AM118147-ST
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
ES
UNSPSC -
39121402

Technical Specification

Nominal current -
13 Ampere
Nominal voltage -
230 Volt
Mounting method -
Flush mounted
Colour -
Stainless steel
Model -
British Standard
Halogen free -
Number of units/gangs -
1
Connection type -
Screwed terminal
With indicator lamp -
Number of phases -
2
With enhanced contact protection -
Frequency -
50 Hertz
With on/off switch -
Protective contact -
Material qualifier -
Stainless steel
Special power supply -
No special power supply
Material -
Metal
Type of fastening -
Mounting with screw
Imprint/indication -
None
Impact resistance (IK rating) -
IK04
Surface finish -
Glossy
Degree of protection (IP rating) -
IP20
Width of device -
100 Millimetre
Height of device -
60 Millimetre
Depth of device -
165 Millimetre
With function lighting -
Number of active contacts (rectangular) -
3
ABB

Availability On Request

£41.78
