2CLA626030N1801

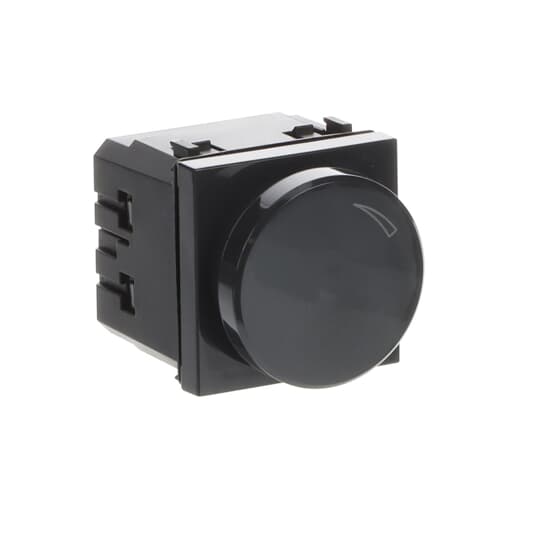

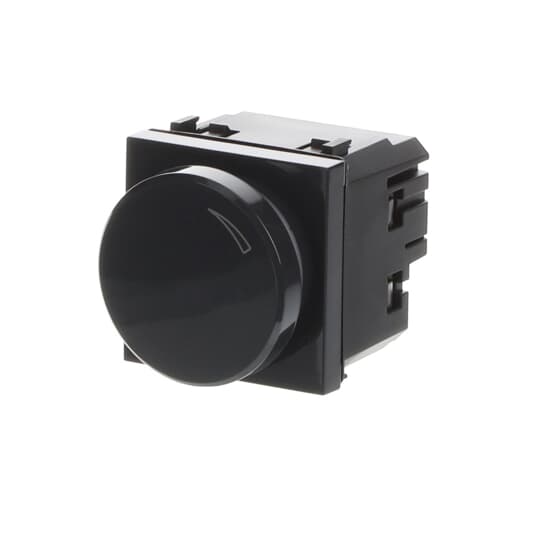

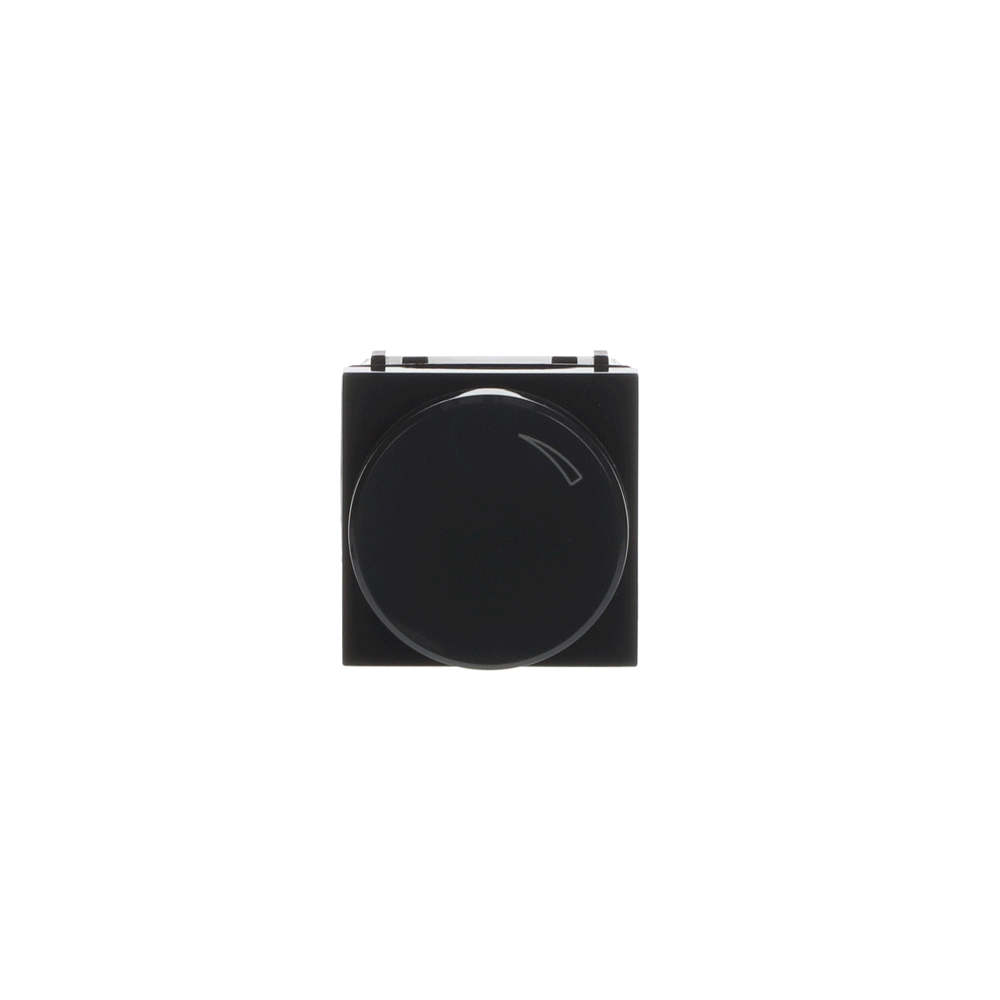

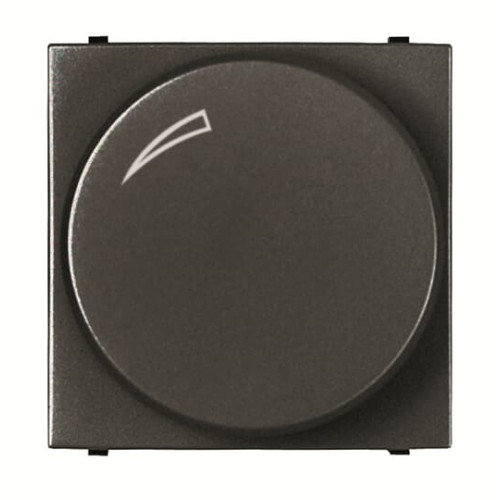

Dimmer 1gang Anthracite Polished - Millenium

Manufacturer's No: AMD60344-AN     Manufacturer: ABB
Dimmer 1gang Anthracite Polished - Millenium

Availability On Request

£130.81
  • Dimmer 1gang Anthracite Polished - Millenium
  • Rated voltage: 230 Vac ± 10%
  • Frequency: 50 Hz / 60 Hz
  • Nominal power: 250 W/VA at 50 Hz, 200 W/VA at 60 Hz
  • Power (min./max load):
    • LEDi: 2 / 100 W/VA (max. 10 lamps)
    • Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps)
    • LV LEDi with transformer (type L or LC): 4 / 100 W/VA (max. 10 lamps)
    • Incandescent lamps: 10 / 250 W/VA
    • Halogen lamps: 10 / 250 W/VA
    • LV halogen with transformer (type L or LC): 10 / 250 W/VA (max. 10 lamps)
  • 2 wire connection
  • Optional: auxiliary on/off with 2-way switch N2X02
  • Indicator LED lamp included
  • Back-up fuse: Electronic
  • Overload protection: Electronic

Read more

  • Ambient temperature: 0° C to +35° C
  • Combination with frames AMD5144-XX & 5244-XX


Product

Manufacturer Material ID -
AMD60344-AN
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Number of module spaces (modular system) -
2
Assembly -
Insert for modular wiring accessories
Colour -
Anthracite
Connection type -
Screwed terminal
Control voltage -
1 Volt
Degree of protection (IP rating) -
IP20
Depth of device -
76 Millimetre
Frequency -
50 Hertz
Height of device -
64 Millimetre
Impact resistance (IK rating) -
IK04
Material -
Metal
Material qualifier -
Other
Method of operation -
Rotating button
Minimum depth of back box -
77 Millimetre
Mounting method -
Flush mounted
Nominal voltage -
250 Volt
Number of units/gangs -
1
Surface finish -
Glossy
Surface protection -
Untreated
Type of fastening -
Other
Type of load -
Resistive load
Width of device -
76 Millimetre
ABB

Availability On Request

£130.81
