2TKA140010G1

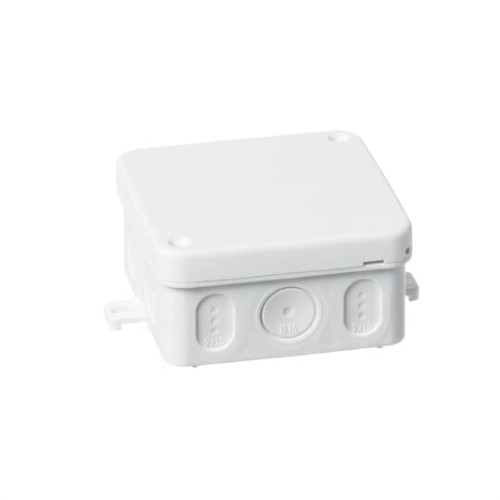

AP75 Junction box IP65 White IP65

Manufacturer's No: AP75     Manufacturer: ABB
AP75 Junction box IP65 White IP65

Availability On Request

POA
  • AP75 Junction box IP65 in white
  • Dimensions: 75 x 75 mm
  • Cable entries: 10 on the sides, 3 on the bottom
  • Suitable for cables up to Ø 18
  • Equipped with fixed two-component membranelid
  • Locks by snapping, can be opened with a screwdriver
  • Pull-out brackets for mounting on a conductive base
  • Sealed box
  • Mounting temperature: -15 to +60 °C
  • Made of halogen-free material (IEC/61249-2-21)


Product

Manufacturer Material ID -
AP75
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
39259080
Country of Origin -
FI
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Diameter -
- Millimetre
Degree of protection (NEMA) -
UN
Number of inlets -
13
Degree of protection (IP) -
IP65
For tube diameter -
Other
Inlet from the rear -
For Ex-zone gas -
None
For Ex-Zone dust -
None
Circuit integrity -
None
Max. conductor cross section -
2.5 Square millimetre
For ATEX classification, Ex-zone gas -
None
For ATEX classification, Ex-zone dust -
None
Colour -
White
Cover attachment -
Snap on
Cover model -
Blind cover
Degree of protection (IP rating) -
IP65
Depth -
75 Millimetre
Entry point on rear -
Equipped with -
None
Halogen free -
Length -
75 Millimetre
Material -
Other
Mounting method -
Universal
Number of entry points -
13
Rated insulation voltage Ui -
400 Volt
Sealable -
Shape -
Square
Surface protection -
Untreated
Type of housing feed-through -
Seal membrane
Weatherproof -
Width -
75 Millimetre
Working temperature -
-15 Degrees celsius
ABB

Availability On Request

POA
