1SBL101001R2310

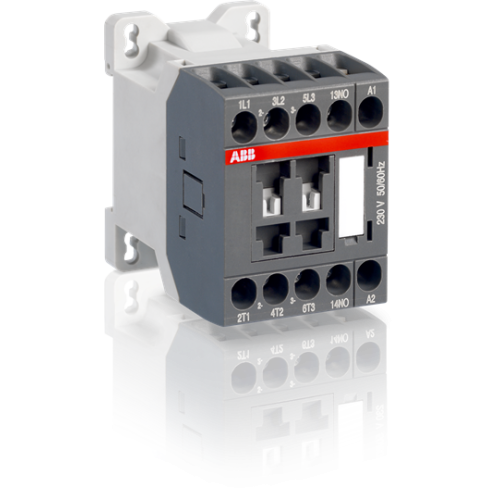

AS09-30-10-23 110V50/60HZ Contactor

Manufacturer's No: AS09-30-10-23     Manufacturer: ABB
AS09-30-10-23 110V50/60HZ Contactor

Availability On Request

£43.05
AS09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The AS... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.


Product

Manufacturer Material ID -
AS09-30-10-23
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
4 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
ABB

Availability On Request

£43.05
