1SBL113001R8110

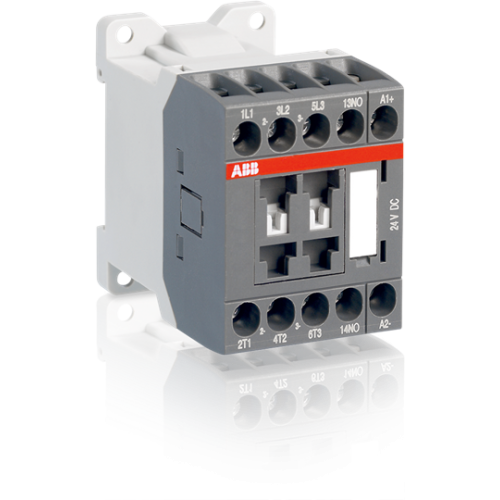

ASL12-30-10-81 24VDC Contactor

Manufacturer's No: ASL12-30-10     Manufacturer: ABB
ASL12-30-10-81 24VDC Contactor

Availability On Request

£90.49
  • ASL12-30-10-81 24VDC Contactor
  • Mainly used for controlling 3-phase motors up to 690 V AC or 220 V DC
  • Suitable for non-inductive or slightly inductive loads
  • 1-stack 3-pole contactors with block type design
  • 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks
  • Control circuit: DC operated with solid core magnet circuit
  • Accessories available
  • Fitted with low consumption DC coils
  • Suitable for direct control by PLC outputs


Product

Manufacturer Material ID -
ASL12-30-10
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation current Ie at AC-1, 400 V -
24 Ampere
Depth -
72.5 Millimetre
Height -
68 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at DC -
690 Volt
Rated control supply voltage at DC -
24 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
45 Millimetre
