GJL1211009R0101

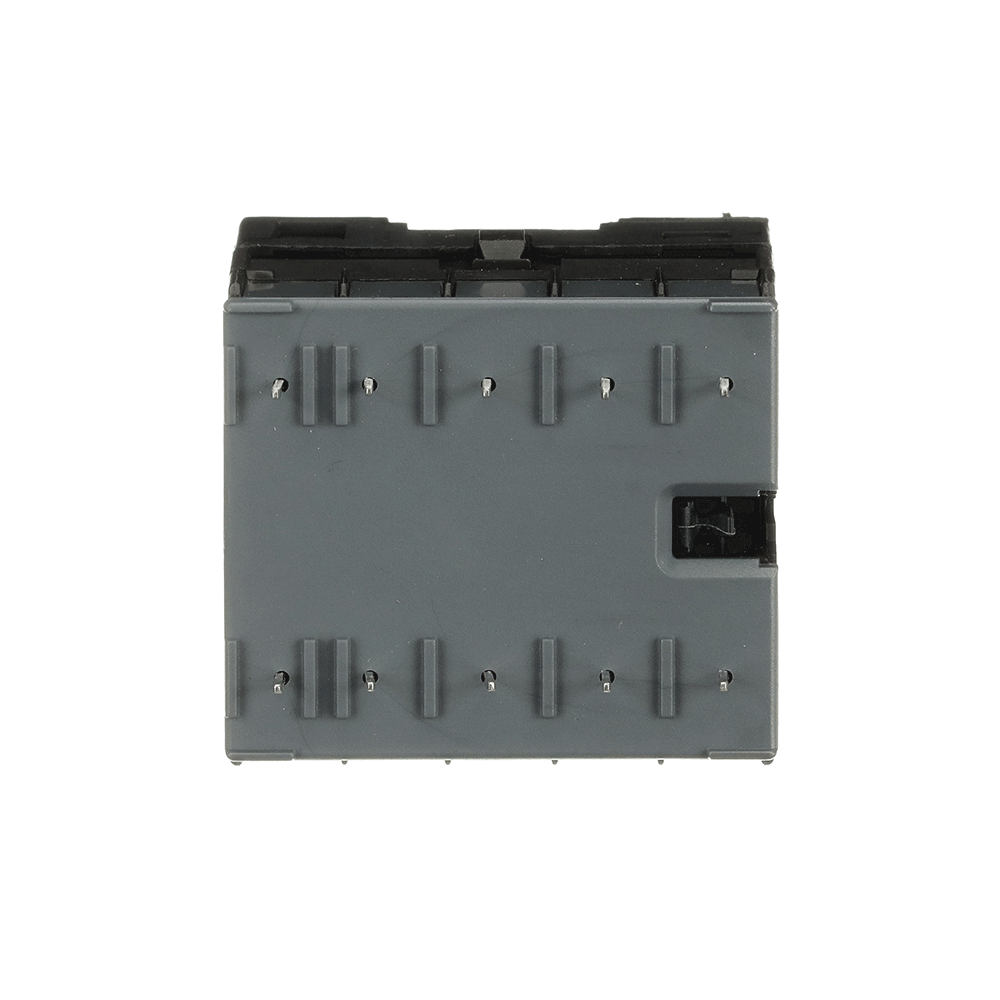

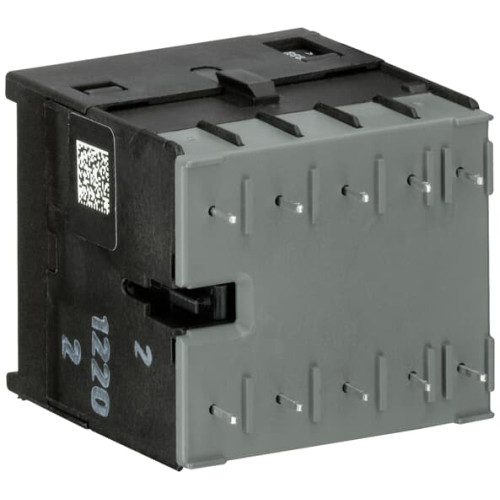

B6-30-10-P-01 Mini Contactor 24 V AC - 3 NO - 0 NC - Soldering Pins

Manufacturer's No: B6-30-10P     Manufacturer: ABB
B6-30-10-P-01 Mini Contactor 24 V AC - 3 NO - 0 NC - Soldering Pins

Availability In Stock

£31.57
  • Model: B6-30-10-P-01 Mini Contactor
  • Voltage: 24 V AC
  • Configuration: 3 Normally Open (NO) contacts, 0 Normally Closed (NC) contacts
  • Compact 3 pole contactor with 1 auxiliary contact and soldering pins
  • Ideal for applications requiring reliability in limited space
  • Suitable for controlling single or three-phase loads up to 4 kW (AC-3) and 12 A (AC-1)
  • Features silent coil, switch position indication, and integrated rail mounting option


Product

Manufacturer Material ID -
B6-30-10P
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Depth -
47.7 Millimetre
Height -
45.2 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated operation current Ie at AC-1, 400 V -
12 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
1.4914 Kilowatt
Type of electrical connection of main circuit -
PCB connection
Voltage type for actuating -
AC
Width -
47.5 Millimetre
