GJL1213001R7101

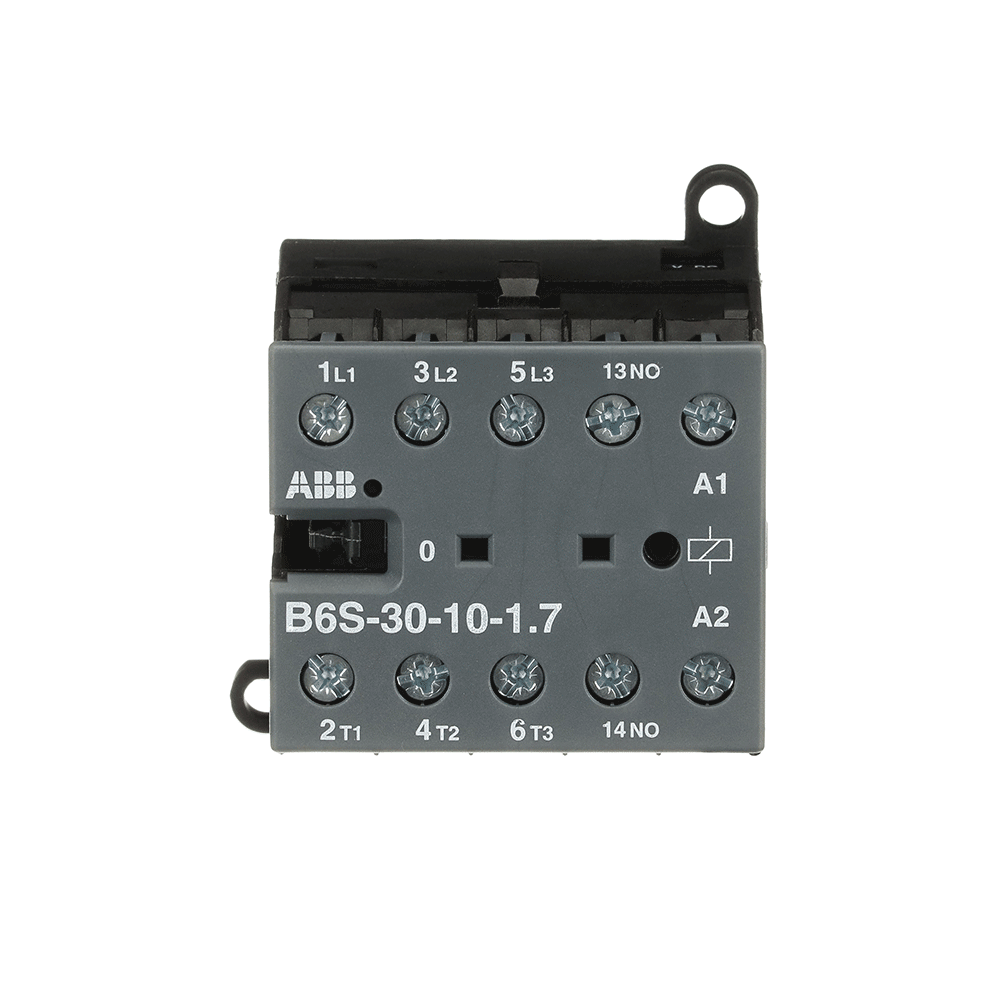

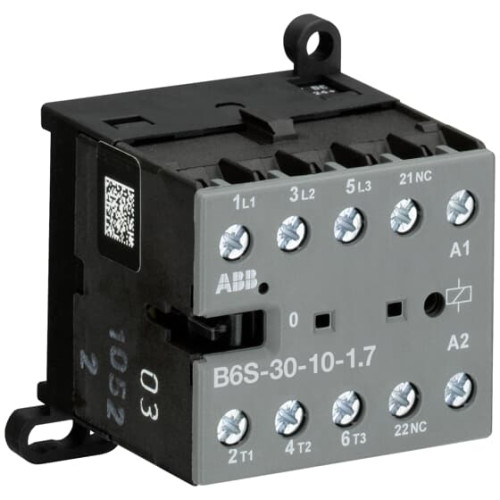

B6S-30-10-1.7-71 Mini Contactor 24 V DC - 3 NO - 0 NC - Screw Terminals

Manufacturer's No: B6S-30-10     Manufacturer: ABB
B6S-30-10-1.7-71 Mini Contactor 24 V DC - 3 NO - 0 NC - Screw Terminals

Availability Back Order

£31.57
  • Model: B6S-30-10-1.7-71 Mini Contactor
  • Voltage: 24 V DC
  • Configuration: 3 NO (Normally Open), 0 NC (Normally Closed)
  • Compact 3 pole contactor with 1 auxiliary contact
  • Screw terminals for easy installation
  • Suitable for single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1)
  • Low coil consumption allows direct control by a PLC
  • Noiseless and hum-free coil operation
  • Integrated protective circuit with diodes and overvoltage protection
  • Switch position indication for easy monitoring

Read more

  • Can be mounted on a rail or wall for flexibility


Product

Manufacturer Material ID -
B6S-30-10
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
46.7 Millimetre
Height -
57.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
1.4914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
52.5 Millimetre
ABB

Availability Back Order

£31.57
