GJL1311201R8000

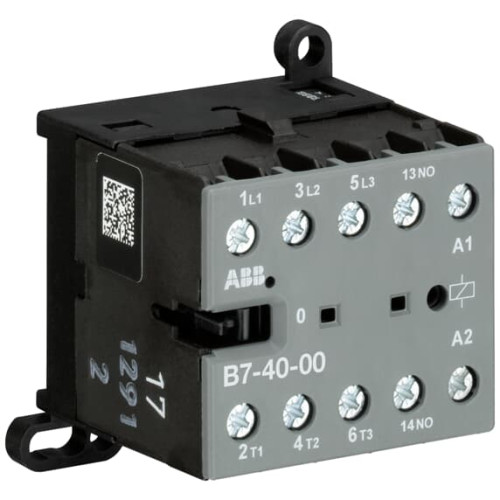

B7-40-00-80 Mini Contactor 220 ... 240 V AC - 4 NO - 0 NC - Screw Terminals

Manufacturer's No: B7-40-00     Manufacturer: ABB
B7-40-00-80 Mini Contactor 220 ... 240 V AC - 4 NO - 0 NC - Screw Terminals

Availability On Request

£53.92
  • Model: B7-40-00-80 Mini Contactor
  • Voltage: 220-240 V AC
  • Configuration: 4 Normally Open (NO) contacts, 0 Normally Closed (NC) contacts
  • Terminals: Screw terminals
  • Compact 4-pole contactor designed for reliability in limited space applications
  • Suitable for controlling single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1)
  • Features silent coil, switch position indication, and integrated rail or wall mounting option
  • Commonly used in residential, commercial, and industrial settings


Product

Manufacturer Material ID -
B7-40-00
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
220 Volt
Depth -
46.7 Millimetre
Height -
57.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
220 Volt
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
2.2371 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC
Width -
52.5 Millimetre
ABB

Availability On Request

£53.92
