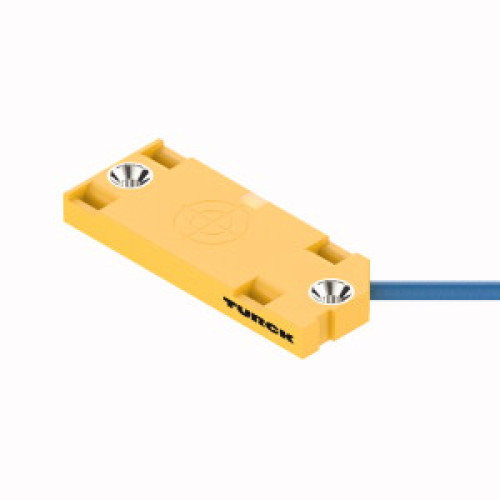

Capacitive Sensor

Manufacturer's No: BC5-QF5.5-Y1X/S250     Manufacturer: Turck Banner
Capacitive Sensor

Availability On Request

£90.92
  • Capacitive Sensor
  • Rated switching distance: 5 mm
  • Flush mounting style
  • Rectangular shape with a height of 5.5 mm
  • Large active face for improved sensing
  • Material: Plastic (PP)
  • Fixed settings for ease of use
  • DC 2-wire system with a nominal voltage of 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR) standards
  • Cable connection for convenient installation

Read more

  • ATEX category II 1 G for Ex zone 0
  • ATEX category II 1 D for Ex zone 20
  • SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BC5-QF5.5-Y1X/S250
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39121402

Technical Specification

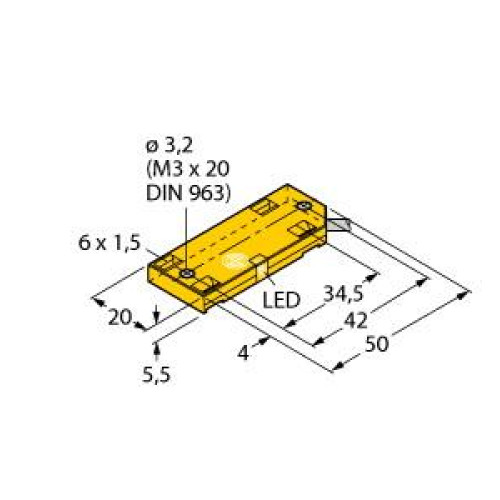

Construction type housing -
Cuboid
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Height of sensor -
5.5 Millimetre
Housing material -
Plastic
Interface type -
Other
Length of sensor -
54 Millimetre
Max. output current at protected output -
2.1 Milliampere
Mechanical mounting condition for sensor -
Concise
SIL according to IEC 61508 -
2
Supply voltage -
8.2 Volt
Switching distance -
5 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of interface for safety communication -
Other
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
20.3 Millimetre
