GJL1213201R0001

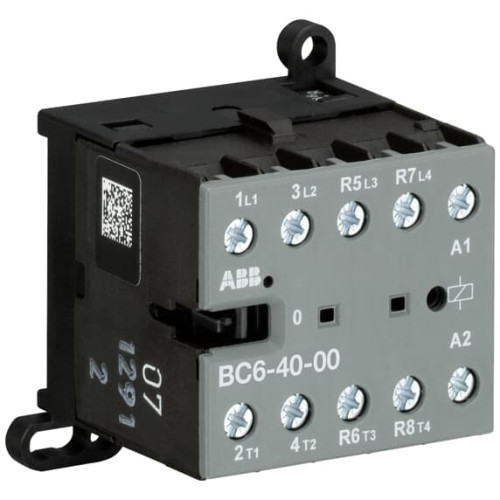

BC6-40-00-01 Mini Contactor 24 V DC - 4 NO - 0 NC - Screw Terminals

Manufacturer's No: BC6.40.00     Manufacturer: ABB
BC6-40-00-01 Mini Contactor 24 V DC - 4 NO - 0 NC - Screw Terminals

Availability On Request

£31.57
  • BC6-40-00-01 Mini Contactor
  • 24 V DC
  • 4 NO (Normally Open) contacts
  • 0 NC (Normally Closed) contacts
  • Compact 4 pole contactor with screw terminals
  • Ideal for applications requiring reliability in limited space
  • Suitable for residential, commercial, and industrial use
  • Controls single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1)
  • Noiseless and hum-free coil
  • Switch position indication

Read more

  • Integrated rail or wall mounting option


Product

Manufacturer Material ID -
BC6.40.00
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
46.7 Millimetre
Height -
57.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
1.4914 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
52.5 Millimetre
ABB

Availability On Request

£31.57
