50138195

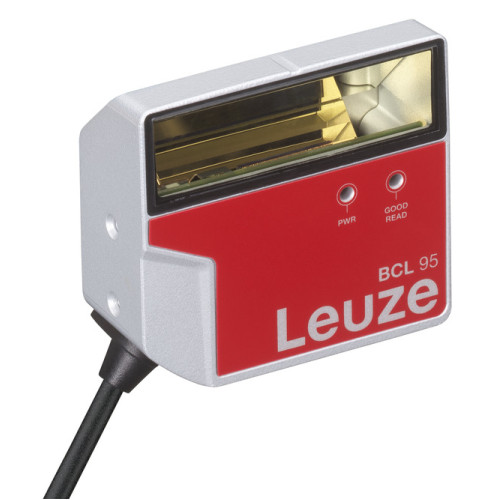

Stationary bar code reader Functions: I/O, Multiple read / MultiScan, Alignment mode, LED indicator, Reference code comparison, Re

Manufacturer's No: BCL95M0/R2     Manufacturer: Leuze
Stationary bar code reader Functions: I/O, Multiple read / MultiScan, Alignment mode, LED indicator, Reference code comparison, Reading gate control, Output format selectable, AutoConfig; Scanning ra

Availability On Request

£1,162.00
  • Functions: I/O, Alignment mode, AutoConfig, LED indicator, Multiple read / MultiScan, Output format selectable, Reading gate control, Reference code comparison
  • Scanning rate: 600 scans/s
  • Reading distance: 25
  • 170 mm
  • Reading method: Line scanner
  • Light beam exit: Lateral
  • Supply voltage: 4.75
  • 5.5 V, DC
  • Digital switching inputs: 1 Piece
  • Digital switching outputs: 1 Piece

Read more

  • Interface: RS 232
  • Connection: Cable
  • Dimensions: 62 mm x 56.9 mm x 23.8 mm
  • Display: LED
  • Ambient temperature, operation: 5
  • 40 °C
  • Certifications: c UL US

Accessories



Product

Manufacturer Material ID -
BCL95M0/R2
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Scanning interval -
- Hertz
Number of safety fields -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Detection power for test bodies -
- Millimetre
Laser protection class -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Transmission range of the measuring range -
- Metre
Transmission range of the safety field -
- Metre
Transmission range of the alert field -
- Metre
Scan angle -
- Degrees
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Ambient temperature -
5 Degrees celsius
Height of sensor -
56.9 Millimetre
Length of sensor -
23.8 Millimetre
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
4.75 Volt
Type of electric connection -
Cable
Type of switching output of the OSSD -
NPN
Voltage type -
DC
Wavelength of the sensor -
655 Nanometre
Width sensor -
62 Millimetre
With configurable message output -
Leuze

Availability On Request

£1,162.00
