2CDG110093R0011

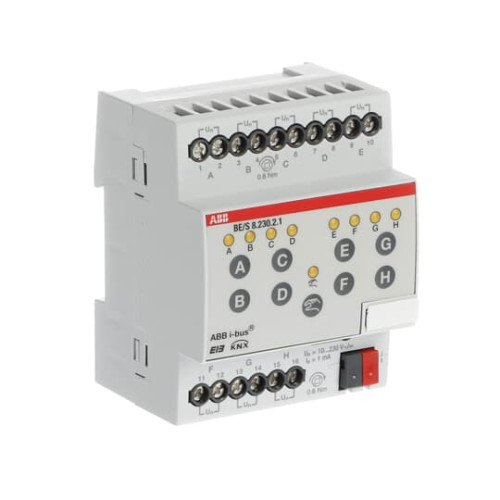

BE/S8.230.2.1 Binary Input, 8-fold, 10-230 V, MDRC

Manufacturer's No: BE/S8.230.2.1     Manufacturer: ABB
BE/S8.230.2.1 Binary Input, 8-fold, 10-230 V, MDRC

Availability On Request

£494.06
  • Binary input module BE/S8.230.2.1
  • 8-fold input for detecting 10-230V AC/DC signals
  • MDRC design
  • 8 LEDs indicate state inputs
  • Maximum of 8 signals detectable
  • Each channel equipped with a push button for manual operation
  • Powered by ABB i-bus®


Product

Manufacturer Material ID -
BE/S8.230.2.1
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Degree of protection (IP) -
IP20
Type of voltage (input voltage) -
AC/DC
With LED indication -
Bus system KNX -
Degree of protection (IP rating) -
IP20
External signal voltage necessary -
Input voltage -
10 Volt
Minimum depth of back box -
64.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Number of inputs -
8
Other bus systems -
None
Width in number of modular spacings -
4
ABB

Availability On Request

£494.06
