2CDG510003R0011

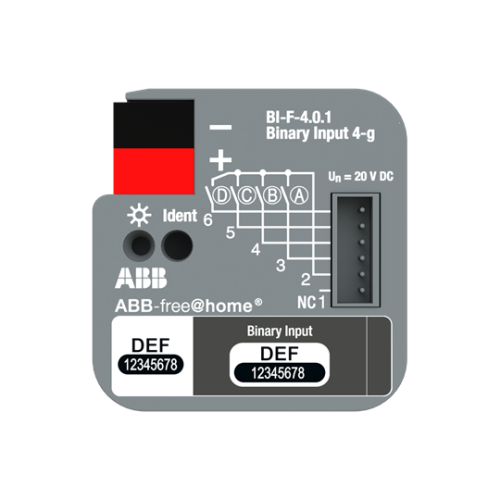

BI-F-4.0.1 Binary Input, 4-fold, FM

Manufacturer's No: BI-F-4.0.1     Manufacturer: ABB
BI-F-4.0.1 Binary Input, 4-fold, FM

Availability On Request

POA
  • BI-F-4.0.1 Binary Input
    • 4-fold, FM
    • 4 channels for connecting push-buttons or auxiliary contacts
    • Contact scanning for controlling free@home actuators or indicating status information
    • Contact scanning voltage provided by the device
    • Powered by free@home bus, no additional power supply required
    • Compact design fits conventional 60mm installation boxes or device boxes


Product

Manufacturer Material ID -
BI-F-4.0.1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Width in number of modular spacings -
-
Degree of protection (IP) -
IP20
Bus system radio frequent -
Bus system Powernet -
Bus connection included -
Bus system LON -
With LED indication -
Bus system KNX radio -
Degree of protection (IP rating) -
IP20
External signal voltage necessary -
Input voltage -
20 Volt
Mounting method -
Flush mounted
Number of inputs -
4
Other bus systems -
Other
Radio frequent bidirectional -
Type of voltage (input voltage) -
Pulsed
