1634815

Inductive Sensor, For the Food Industry

Manufacturer's No: BI8U-EM18WD-AP6X     Manufacturer: Turck Banner
Inductive Sensor, For the Food Industry

Availability On Request

POA
  • Inductive sensor designed for the food industry
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 8 mm

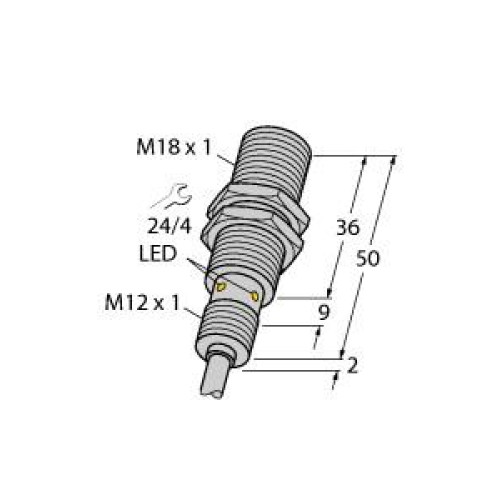

  • Flush mounting style with a threaded barrel (M18 x 1) made of stainless steel (1.4404)
  • Front cap constructed from liquid crystal polymer
  • Factor 1 sensing for all metals
  • Resistant to magnetic fields
  • Temperature range: -40°C to +100°C
  • High protection class IP69K for harsh environments
  • Equipped with a special double-lip seal for added protection

Read more

  • Compatible with all common acidic and alkaline cleaning agents
  • Laser engraved label for permanent legibility
  • DC 3-wire configuration with NO contact and PNP output
  • Cable length: 2m


Product

Manufacturer Material ID -
BI8U-EM18WD-AP6X
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
8 Millimetre
Switching frequency -
1500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

POA
