4621311

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Manufacturer's No: BIM-EG08-AP6X-H1341     Manufacturer: Turck Banner
Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Availability On Request

£133.76
  • Type: Magnetic Field Sensor
  • Technology: Magnetic-inductive Proximity Sensor
  • Operating Voltage: 10 to 30 VDC
  • Rated Switching Distance: 78 mm
  • Material: Stainless steel (1.4427 SO)

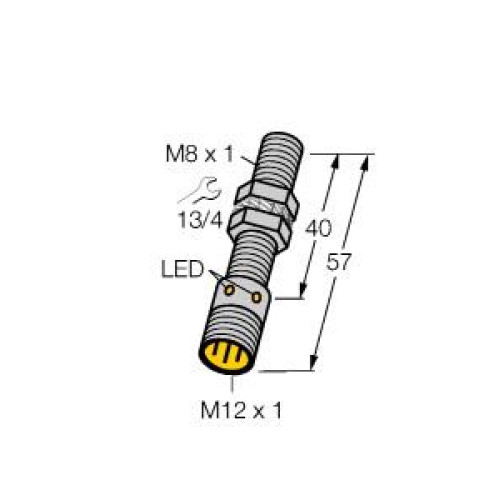

  • Threaded Barrel: M8 x 1
  • Rated Operating Distance: 78 mm (with DMR31-15-5 magnet)
  • Electrical Specifications: DC 3-wire, NO contact, PNP output
  • Connector Type: Male connector
  • Connector Size: M12 x 1


Product

Manufacturer Material ID -
BIM-EG08-AP6X-H1341
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Stainless steel
Length of sensor -
57 Millimetre
Rated supply voltage at DC -
10 Volt
Switching distance -
78 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Plug-in connection
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£133.76
