Magnetic Field Sensor, Magnetic-inductive Proximity Sensor, Operating voltage Nom

Manufacturer's No: BIM-EG08-Y1X     Manufacturer: Turck Banner
Magnetic Field Sensor, Magnetic-inductive Proximity Sensor, Operating voltage Nom

Availability Available to order

POA
  • Magnetic Field Sensor
  • Magnetic-inductive Proximity Sensor
  • Rated switching distance: 78 mm
  • Rated operating distance: 78 mm with DMR31-15-5 magnet
  • Cable length: 2 m

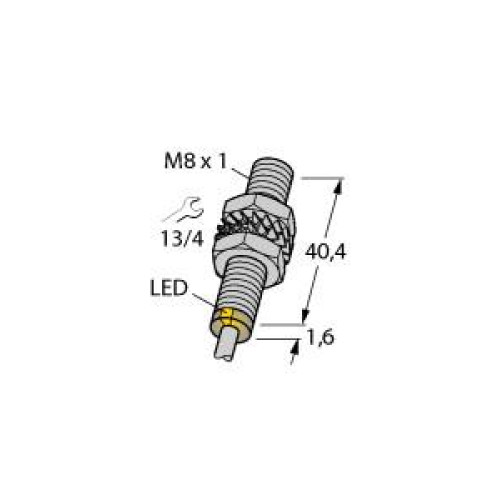

  • M8 × 1 threaded barrel, Stainless steel, 1.4427 SO
  • DC 2-wire, nominal 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0

Read more

  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BIM-EG08-Y1X
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Stainless steel
Length of sensor -
41.6 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
2
Suitable for safety functions -
Switching distance -
78 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
