1074001

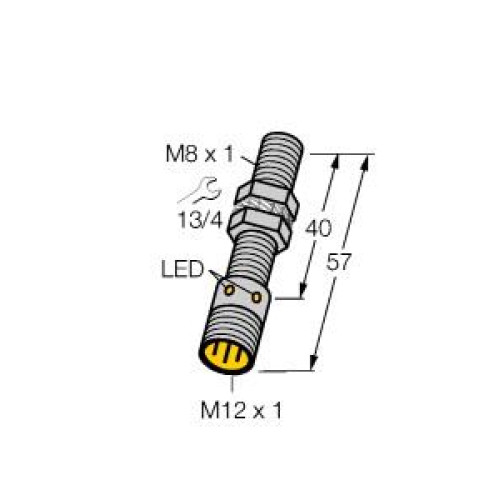

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Manufacturer's No: BIM-EG08-Y1X-H1341     Manufacturer: Turck Banner
Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Availability On Request

£84.41
  • Magnetic Field Sensor
  • Magnetic-inductive Proximity Sensor
  • Rated switching distance: 78 mm
  • Threaded barrel: M8 × 1
  • Material: Stainless steel (1.4427 SO)
  • Rated operating distance: 78 mm with DMR31-15-5 magnet
  • Power supply: DC 2-wire, 8.2 VDC
  • Output: DIN EN 60947-5-6 (NAMUR)
  • Connector: Male M12 x 1
  • ATEX certified: II 1 G (Ex zone 0), II 1 D (Ex zone 20)

Read more

  • Safety Integrity Level (SIL): SIL2 (Low Demand Mode) per IEC 61508, PL c per ISO 13849-1 with HFT0, SIL3 (All Demand Mode) per IEC 61508, PL e per ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BIM-EG08-Y1X-H1341
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Stainless steel
Length of sensor -
57 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
2
Suitable for safety functions -
Switching distance -
78 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Plug-in connection
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability On Request

£84.41
