1579911

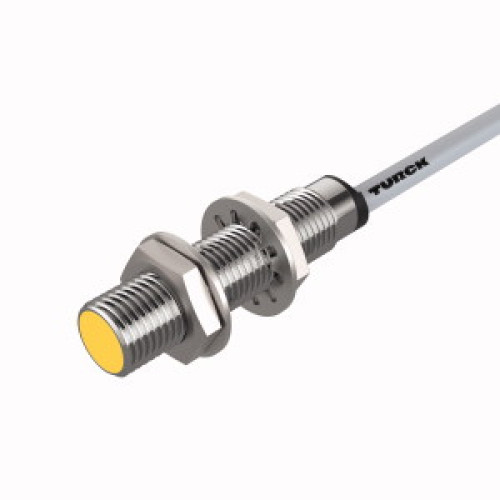

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Manufacturer's No: BIM-M12E-AP4X/S90     Manufacturer: Turck Banner
Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Availability On Request

£128.52
  • Type: Magnetic Field Sensor
  • Sensor Type: Magnetic-inductive Proximity Sensor
  • Operating Voltage: 10 to 65 VDC
  • Rated Switching Distance: 90 mm
  • Threaded Barrel: M12 x 1, Chrome-plated brass
  • Rated Operating Distance: 90 mm with DMR31-15-5 magnet
  • Output: NO contact, PNP output
  • Electrical Connection: Cable connection
  • Cable Length: 2 m


Product

Manufacturer Material ID -
BIM-M12E-AP4X/S90
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Other
Length of sensor -
64 Millimetre
Rated supply voltage at DC -
10 Volt
Switching distance -
90 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
PNP
Voltage type -
DC
