4685800

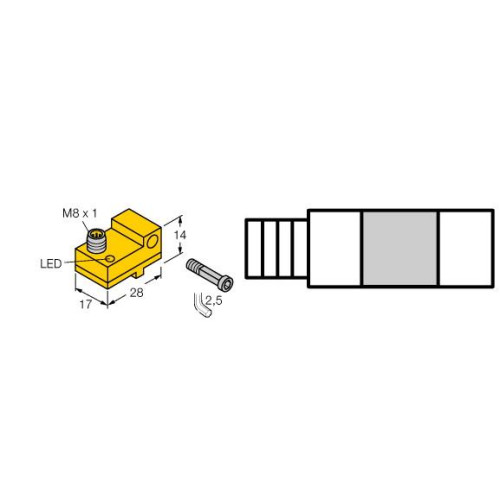

Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-NST-AP6X-V1131     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

POA
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Operating Voltage: 10-30 VDC
  • Material: Plastic (PA12-GF30)
  • Sensor Type: Magnetic-inductive
  • Output: PNP, NO contact
  • Connector: Male, M8 x 1


Product

Manufacturer Material ID -
BIM-NST-AP6X-V1131
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67
Height of sensor -
14 Millimetre
Housing material -
Plastic
Length of sensor -
28 Millimetre
Rated supply voltage at DC -
10 Volt
Type of actuation -
Magnet
Type of electric connection -
Plug-in connection
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
17 Millimetre
Turck Banner

Availability On Request

POA
