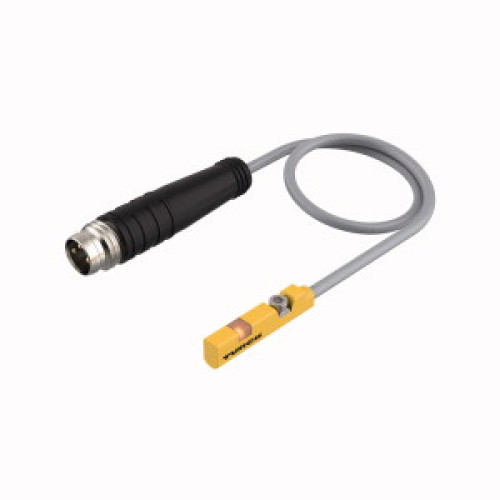

Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-UNR-AP6X-0.3-PSG3S     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

POA
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Operating Voltage: 11-30 VDC
  • Cable Length: 0.3 m
  • Suitable for C-groove cylinders without mounting accessories
  • Optional accessories available for mounting on other cylindrical housings
  • Magneto-resistive sensor with stable mounting
  • DC 3-wire sensor with NO contact
  • Output: PNP
  • Pigtail with Ø 8 mm male connector


Product

Manufacturer Material ID -
BIM-UNR-AP6X-0.3-PSG3S
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67

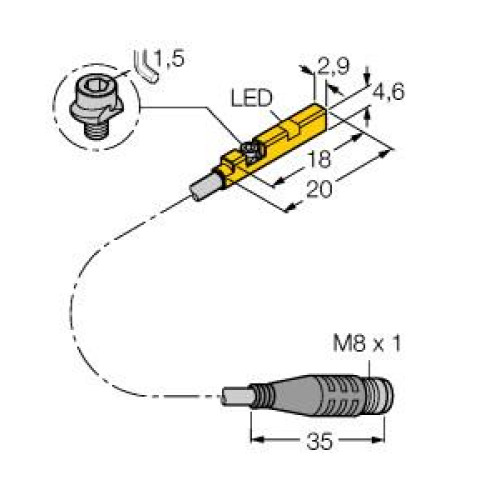

Height of sensor -
4.6 Millimetre
Housing material -
Plastic
Length of sensor -
18 Millimetre
Rated supply voltage at DC -
11 Volt
Type of actuation -
Magnet
Type of electric connection -
Cable with connector
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
2.9 Millimetre
