Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-UNT-AY1X/S1139     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

£65.03
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Suitable for T-groove cylinders without mounting accessories
  • Optional accessories available for other cylinder designs
  • One-hand mounting capability for easy installation
  • Magneto-resistive sensor with long overtravel
  • Designed for large cylinders
  • DC 2-wire sensor with nominal 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR) standard
  • Binary signal output with NO contact
  • Cable connection with 2m cable length

Read more

  • ATEX category II 1 G for Ex Zone 0 and ATEX category II 1 D for Ex Zone 20


Product

Manufacturer Material ID -
BIM-UNT-AY1X/S1139
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G

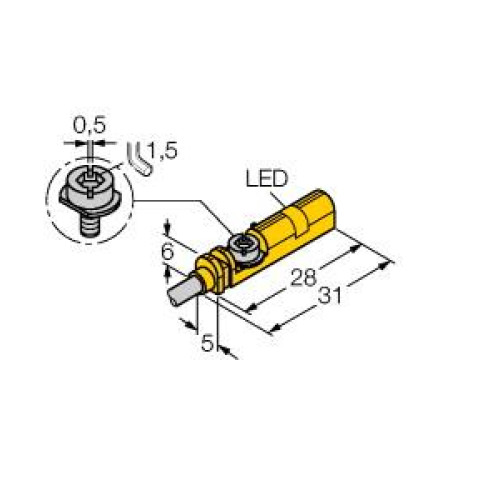

Height of sensor -
6 Millimetre
Housing material -
Plastic
Length of sensor -
28 Millimetre
Performance level acc. to EN ISO 13849-1 -
None
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
5 Millimetre
