6827249

CODESYS 2 Programmable Gateway for the BL20 I/O System, Interface for Modbus TCP

Manufacturer's No: BL20-PG-EN     Manufacturer: Turck Banner
CODESYS 2 Programmable Gateway for the BL20 I/O System, Interface for Modbus TCP

Availability On Request

£609.25
  • Programmable Gateway for BL20 I/O System
  • Interface: Modbus TCP
  • CODESYS programmable according to IEC 61131-3
  • Ethernet and RS232 programming interface
  • 512 kB program memory
  • 32-bit RISC processor
  • Response time: < 1 ms for 1000 commands
  • 3 decimal rotary coding switches
  • Protection class: IP20
  • Integrated power supply

Read more

  • LEDs for display of supply voltage, group, and bus errors
  • Acts as a gateway between BL20 system and MODBUS TCP
  • Network speed: 10/100 Mbps


Product

Manufacturer Material ID -
BL20-PG-EN
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85371091200
Country of Origin -
DE
UNSPSC -
39121402

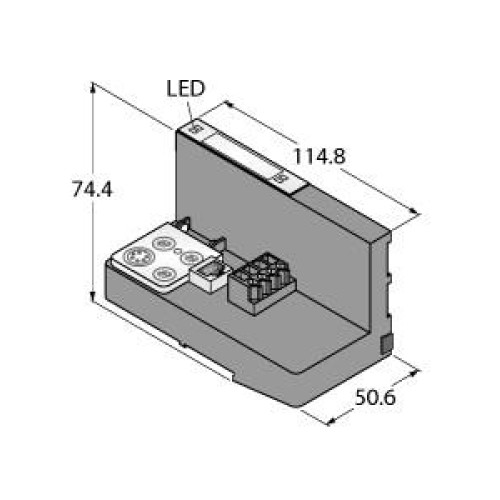

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
50.6 Millimetre
Height -
74.4 Millimetre
Width -
114.8 Millimetre
Turck Banner

Availability On Request

£609.25
