3038534

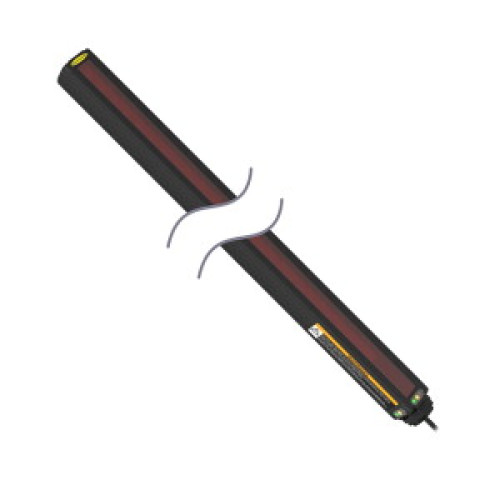

MINI-ARRAY: Receiver Sensor 905 (35.6 in), Beam Spacing: 9.5 (0.38 in), Total Beams = 96, System Range (w/ matching emitter) = 0.6

Manufacturer's No: BMRL3632A     Manufacturer: Turck Banner
MINI-ARRAY: Receiver Sensor 905 (35.6 in), Beam Spacing: 9.5 (0.38 in), Total Beams = 96, System Range (w/ matching emitter) = 0.6 to 6.1 m, System Requires 2 Quick-Disconnect Cables

Availability On Request

£1,321.12
  • Measuring Light Screen
  • Receiver included
  • Operating voltage: 11.4 to 14 VDC
  • Max. sensing range: 6.1 meters
  • Max. range: 6100 mm
  • Scan field: 895 mm
  • Minimum target size: 9.7 mm
  • Protection class: IP65
  • Adjustment via software


Product

Manufacturer Material ID -
BMRL3632A
Net Weight -
1.86kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
963 Millimetre
Length of sensor -
38.1 Millimetre
Resolution of the light curtain -
9.7 Millimetre
Safety field height -
905 Millimetre
Scope of delivery of the one-way system -
Receiver
Type of electric connection -
Connector 7/8 inch
Width sensor -
38.1 Millimetre
Turck Banner

Availability On Request

£1,321.12
