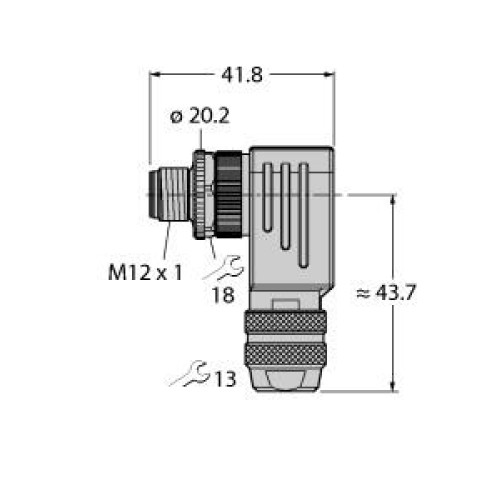

Field-Wireable Connector, Male Connector M12 × 1, Angled

Manufacturer's No: BMSWS8251-8.5     Manufacturer: Turck Banner
Field-Wireable Connector, Male Connector M12 × 1, Angled

Availability On Request

POA
  • Field-wireable male connector M12 × 1, angled
  • Voltage: 125 V
  • Designed for PROFIBUS-DP applications with up to 12 Mbps
  • Shielding via iris spring connection
  • B-coding with metal housing
  • Screw-clamp terminal
  • 5-pin configuration
  • M18 × 1 metric screw-in thread
  • Cable diameter: 6.0 to 8.5 mm


Product

Manufacturer Material ID -
BMSWS8251-8.5
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-40 Degrees celsius
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Degree of protection (IP), mounted -
IP67
Diameter connector -
8.5 Millimetre
Housing material -
Brass
Material of contact surface -
Gold
Rated current In -
4 Ampere
Rated voltage -
125 Volt
Type of electric connection -
Other
Type of housing -
Angled
Turck Banner
