Accessories, Mounting Kit

Manufacturer's No: BTS-DSU35-Z03     Manufacturer: Turck Banner
Accessories, Mounting Kit

Availability On Request

£25.13

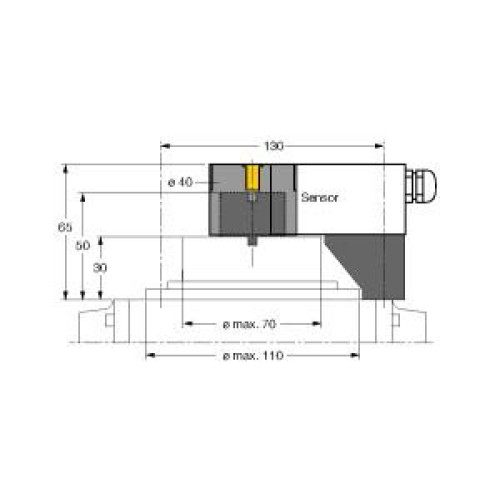

  • Mounting kit for larger rotary actuators: - Ø spacer plate and snap ring: max. 110 mm - Hole pattern on flange surface: 30 x 130 mm - Connection shaft height: 30 mm / Ø: max. 70 mm

  • Included in delivery: - 1 spacer plate Ø 30 mm (POM) - 1 spacer ring Ø 20 mm (PP-GF30)

  • Mounting accessories: - Mounting the spacer plate: - 2 cylinder screws M5 x 12 [DIN 912-A2] - 2 cylinder screws M5 x 45 [DIN 912-A2] - 2 lock washers A5 [DIN 137-A2]

    • Mounting the puck with spacer ring:
      • 1 countersunk screw M6 x 45 [DIN 7991-A2]
      • Spacer ring has a 4 x 4 mm cross-shaped notch for 90° offset mounting, suitable for crosswise-mounted drives.


Product

Manufacturer Material ID -
BTS-DSU35-Z03
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389099990
Country of Origin -
DE
UNSPSC -
39122216
Turck Banner

Availability On Request

£25.13
