BVP:034268

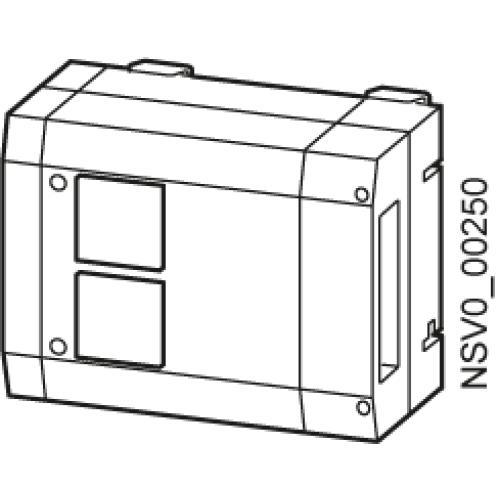

BD01-AK1X/2SD163S14 TAP-OFF UNIT

Manufacturer's No: BVP:034268     Manufacturer: Siemens
BD01-AK1X/2SD163S14 TAP-OFF UNIT

Availability On Request

POA
  • Model: BD01-AK1X/2SD163S14
  • Tap-off unit for data transmission
  • Designed for high-speed networks
  • Compact and lightweight design
  • Easy to install and use


Product

Manufacturer Material ID -
BVP:034268
Net Weight -
1.40kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101601

Technical Specification

Protection -
UN
Number of conductors (without earthing) -
-
Degree of protection (NEMA) -
UN
Number of NEMA socket outlets -
-
RAL-number -
7035
With adjustment -
Degree of protection (IP) -
IP54
Colour -
Grey
RAL number -
7035
Degree of protection (IP rating) -
IP54
Type of socket outlets -
Socket outlet with protective contact 16 A
Branch off type -
Socket outlet
Height -
137 Millimetre
Length -
195 Millimetre
Number of CEE socket outlets -
0
Number of other socket outlets -
0
Number of poles -
5
Rated current at AC 50 Hz -
16 Ampere
Rated voltage at AC 50 Hz -
230 Volt
Width -
160 Millimetre
With locking -

Availability On Request

POA
