BVP:047230

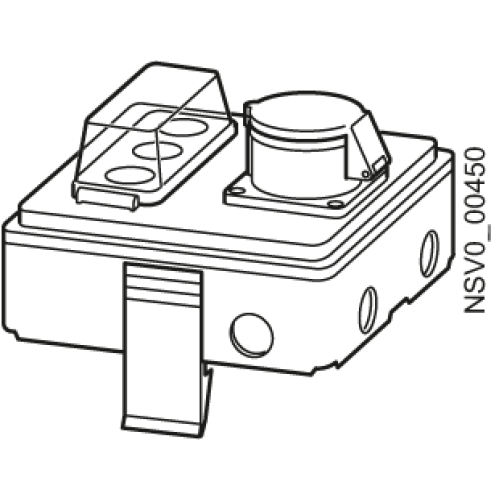

BD2-AK1/CEE165S14 TAP-OFF UNIT 16A / 3X1P D01+1X5 P.CEE

Manufacturer's No: BVP:047230     Manufacturer: Siemens
BD2-AK1/CEE165S14 TAP-OFF UNIT 16A / 3X1P D01+1X5 P.CEE

Availability On Request

POA
  • Model: BD2-AK1/CEE165S14
  • Tap-off unit for 16A / 3-phase with 1 fuse holder D01 and 1 socket outlet 5-pin CEE


Product

Manufacturer Material ID -
BVP:047230
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
26101601

Technical Specification

Protection -
UN
Degree of protection (NEMA) -
UN
Number of NEMA socket outlets -
-
RAL-number -
7035
With adjustment -
Degree of protection (IP) -
IP54
Colour -
Grey
RAL number -
7035
Degree of protection (IP rating) -
IP54
Type of socket outlets -
CEE socket outlet 5-pole 16 A
Branch off type -
Socket outlet
Height -
180 Millimetre
Length -
190 Millimetre
Number of CEE socket outlets -
1
Number of conductors (without earthing) -
0
Number of other socket outlets -
0
Number of poles -
5
Rated current at AC 50 Hz -
16 Ampere
Rated voltage at AC 50 Hz -
400 Volt
Width -
170 Millimetre
With locking -

Availability On Request

POA
