BVP:203149

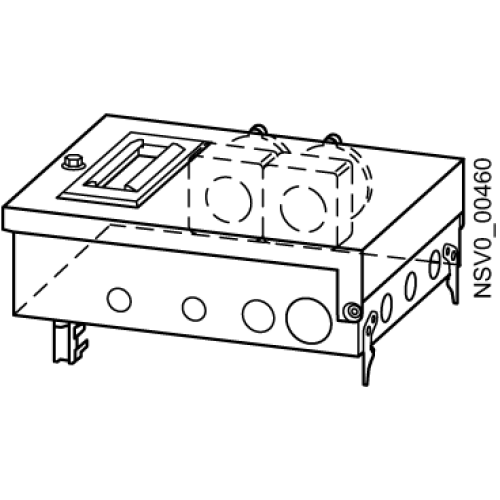

BD2-AK2X/2CEE165S27/FORMP TAP-OFF UNIT 16A / 2X3POL S27+2 X5P.CEE

Manufacturer's No: BVP:203149     Manufacturer: Siemens
BD2-AK2X/2CEE165S27/FORMP TAP-OFF UNIT 16A / 2X3POL S27+2 X5P.CEE

Availability On Request

POA
  • Model: BD2-AK2X/2CEE165S27
  • Tap-off unit for 16A
  • Configuration: 2x3-pole S27 + 2x5-pole CEE


Product

Manufacturer Material ID -
BVP:203149
Net Weight -
4.90kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
26101601

Technical Specification

Protection -
UN
Degree of protection (NEMA) -
UN
Number of NEMA socket outlets -
-
RAL-number -
7035
With adjustment -
Degree of protection (IP) -
IP54
Colour -
Grey
RAL number -
7035
Degree of protection (IP rating) -
IP54
Type of socket outlets -
CEE socket outlet 5-pole 16 A
Branch off type -
Socket outlet
Height -
160 Millimetre
Length -
320 Millimetre
Number of CEE socket outlets -
2
Number of conductors (without earthing) -
0
Number of other socket outlets -
0
Number of poles -
5
Rated current at AC 50 Hz -
16 Ampere
Rated voltage at AC 50 Hz -
400 Volt
Width -
295 Millimetre
With locking -
