BVP:262500

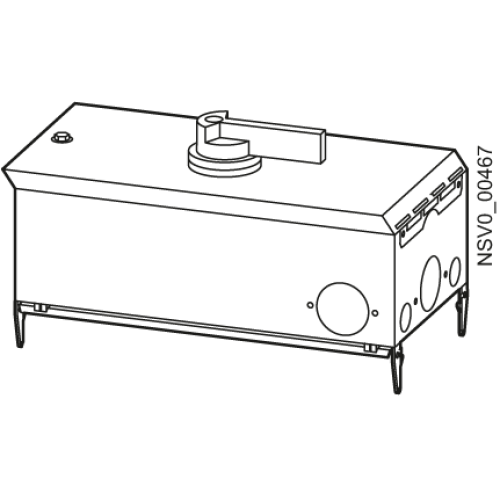

BD2-AK03X/FS125BS-3 TAP-OFF UNIT 125A / 1X 3POLE BS FUSE SWITCH DISC.

Manufacturer's No: BVP:262500     Manufacturer: Siemens
BD2-AK03X/FS125BS-3 TAP-OFF UNIT 125A / 1X 3POLE BS FUSE SWITCH DISC.

Availability Back Order

POA
  • Model: BD2-AK03X/FS125BS-3
  • Tap-Off Unit
  • Current Rating: 125A
  • Configuration: 1 x 3-pole
  • Fuse Switch Disc


Product

Manufacturer Material ID -
BVP:262500
Net Weight -
7.94kg

Additional Product Information

Commodity Code -
85369001
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121409

Technical Specification

Protection -
UN
Degree of protection (NEMA) -
UN
Number of NEMA socket outlets -
-
RAL-number -
7035
With adjustment -
Degree of protection (IP) -
IP54
Colour -
Grey
RAL number -
7035
Degree of protection (IP rating) -
IP54
Type of socket outlets -
Other
Branch off type -
Pipe in-lead
Height -
260 Millimetre
Length -
431 Millimetre
Number of CEE socket outlets -
0
Number of conductors (without earthing) -
0
Number of other socket outlets -
0
Number of poles -
5
Rated current at AC 50 Hz -
125 Ampere
Rated voltage at AC 50 Hz -
400 Volt
Width -
214 Millimetre
With locking -
