4602210

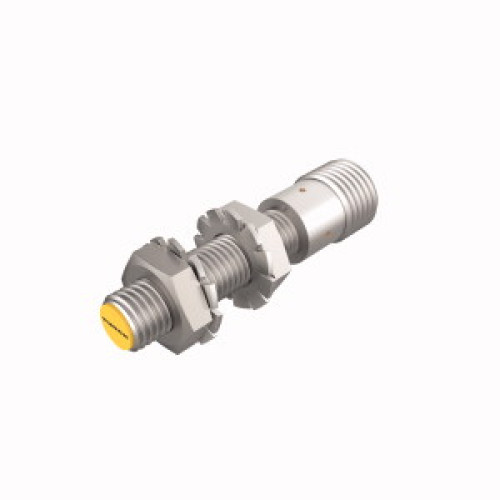

Inductive Sensor, For harsh environments

Manufacturer's No: BI1.5-EG08WD-AP6X-H1341     Manufacturer: Turck Banner
Inductive Sensor, For harsh environments

Availability On Request

£124.58
  • Inductive sensor for harsh environments
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 1.5 mm

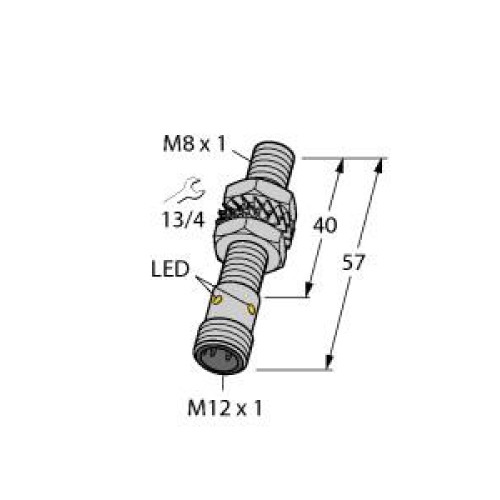

  • Flush type with M8 x 1 threaded barrel
  • Made of stainless steel 1.4404
  • Protection class: IP68/IP69K
  • PVDF front cap for durability
  • Resistant to cleaning agents, cooling lubricants, cutting and grinding oils
  • Viton O-ring seal for added protection
  • Suitable for food industry applications

Read more

  • DC 3-wire with NO contact
  • PNP output with M12 x 1 male connector


Product

Manufacturer Material ID -
BI1.5-EG08WD-AP6X-H1341
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
8 Millimetre
Housing material -
Metal
Length of sensor -
57 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
1.5 Millimetre
Switching frequency -
3000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£124.58
