4617010

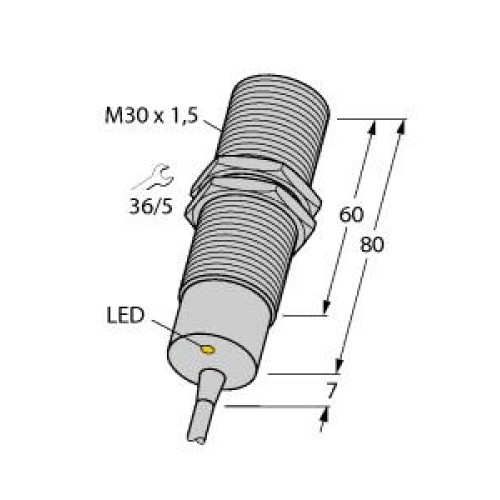

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: BI10-M30-AP6X/S120     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£163.59
  • Inductive sensor with increased temperature range up to +120°C
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 10 mm
  • Flush mounting style with M30 × 1.5 threaded tube
  • Chrome-plated brass construction
  • DC 3-wire sensor with NO contact
  • PNP output
  • Cable length: 2 m


Product

Manufacturer Material ID -
BI10-M30-AP6X/S120
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
87 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
10 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£163.59
